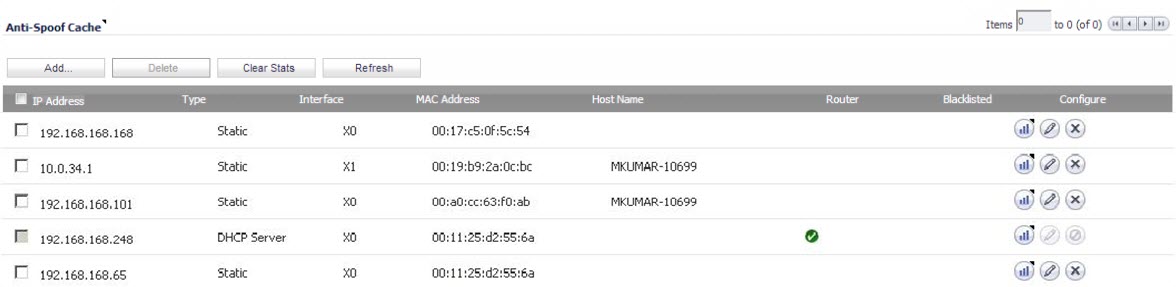

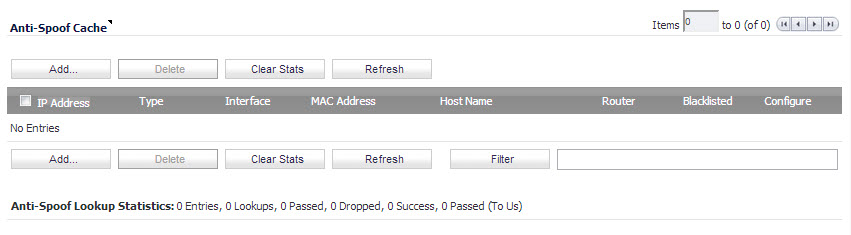

The MAC-IP Anti-Spoof Cache lists all the devices presently listed as “authorized” to access the network, and all devices marked as “blacklisted” (denied access) from the network. To add a device to the list, click the Add button.

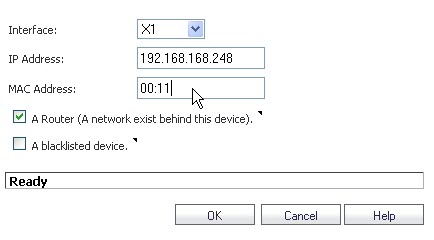

A window is now displayed that allows for manual entry of the IP and MAC addresses for the device. Enter the information in the provided fields. You may also select to approve or blacklist the routing device. Checking the router setting allows all traffic coming from behind this device. Blacklisting the device will cause packets to be blocked from this device, irrespective of its IP address. Once your entries have been made, click OK to return to the main panel.
If you need to edit a static Anti-Spoof cache entry, select the check box to the left of the IP address, then click the Configure icon on the same line.
Single, or multiple, static anti-spoof cache entries can be deleted. To do this, select the delete check box next to each entry, then click the Delete button.
To clear cache statistics, select the desired devices, then click Clear Stats.
If you wish to see the most recent available cache information, click the Refresh button.
