A Wireless LAN (WLAN) subnet allows you to split a single wireless radio interface (W0) into many virtual network connections, each carrying its own set of configurations. The WLAN subnet solution allows each VAP to have its own virtual separate subinterface, even though there is only a single 802.11 radio.
WLAN subnets have several key capabilities and characteristics of a physical interface, including zone assignability, security services, WAN assignability (static addressing only), GroupVPN, DHCP server, IP Helper, routing, and full NAT policy and Access Rule controls. Features excluded from WLAN subnets at this time are VPN policy binding, WAN dynamic client support, and multicast support.

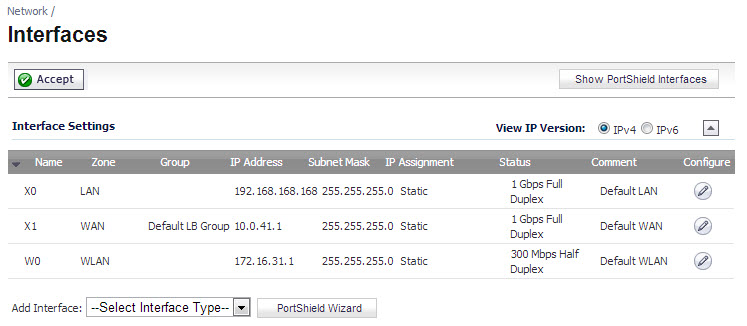

WLAN subnets are configured from the Network > Interfaces page.
The table below lists configuration parameters and descriptions for wireless subnets:
Wireless Subnet Configuration Options
Feature
Description
Zone
Select a pre-defined or custom zone. Only zones with security type of “wireless” are available for selection.
Parent Interface
The default WLAN interface, normally W0.
Subnet Name
Choose a friendly name for this interface.
IP Configuration
Create an IP address and Subnet Mask in accordance with your network configuration.
Sonic Point Limit
The number of radios supported in your deployment, the default value is 1 SonicPoint.
Management
Select the protocols you wish to use when managing this subnet.
User Login
Select the protocols you will make available to clients who access this subnet.
DHCP Server
Select the Create default DHCP Lease Scope option to enable DHCP on this subnet, along with the default number of available leases. Read DHCP Server Scope, for more information on DHCP lease requirements.
