Global Bandwidth Monitor

In Global BWM mode, the BWM Monitor displays eight different monitors. Each monitor shows the bandwidth usage for each priority, and has a separate graph for ingress and egress traffic. The following priorities are displayed in the BWM monitor in Global BWM mode:

•
Real-time
•
Highest
•
High
•
Medium High
•
Medium
•
Medium Low
•
Low
•
Lowest

The View Range list lets you select the following intervals:

•
60 seconds
•
2 minutes
•
5 minutes
•
10 minutes (default)

The Refresh Every box is configurable from 3 to 30 seconds.

The bandwidth management priority is depicted by current, dropped, guaranteed, and maximum.

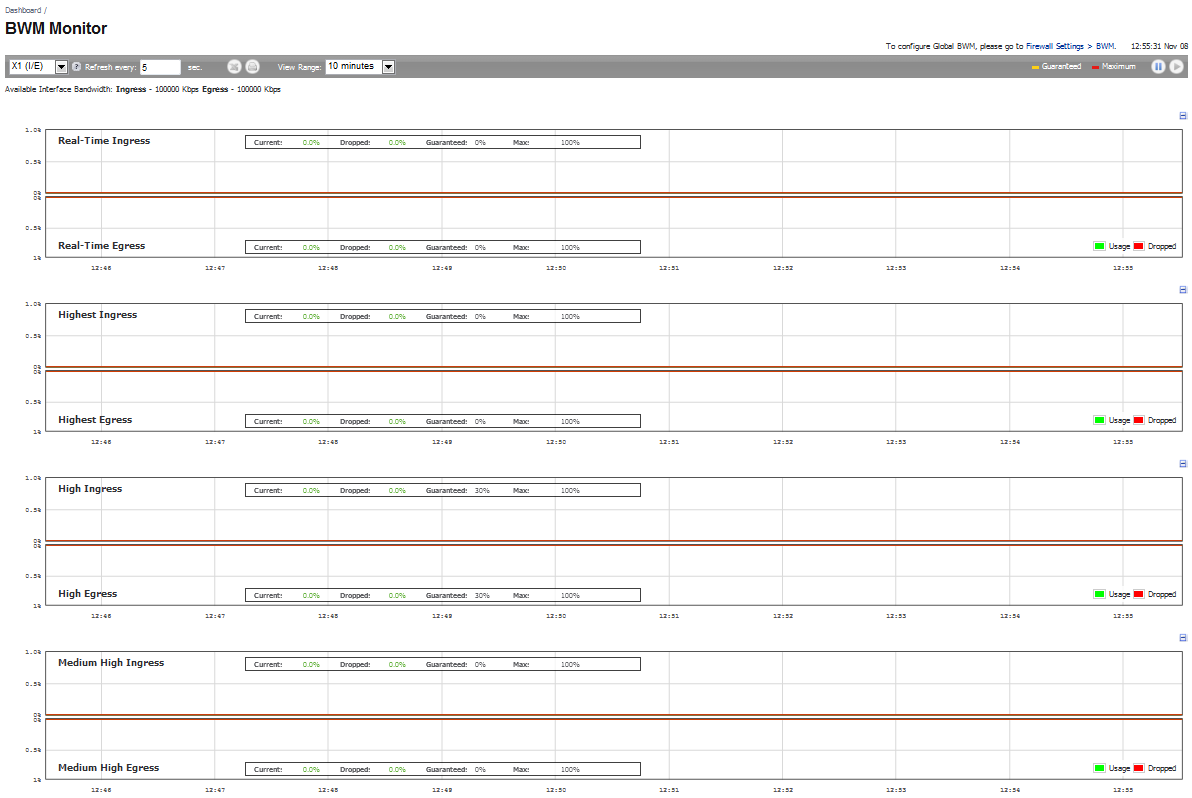

The following graphic shows the BWM Monitor in Global Bandwidth Mode:
