Configuring Global Bandwidth Management

To set the Bandwidth Management type to Global:
1

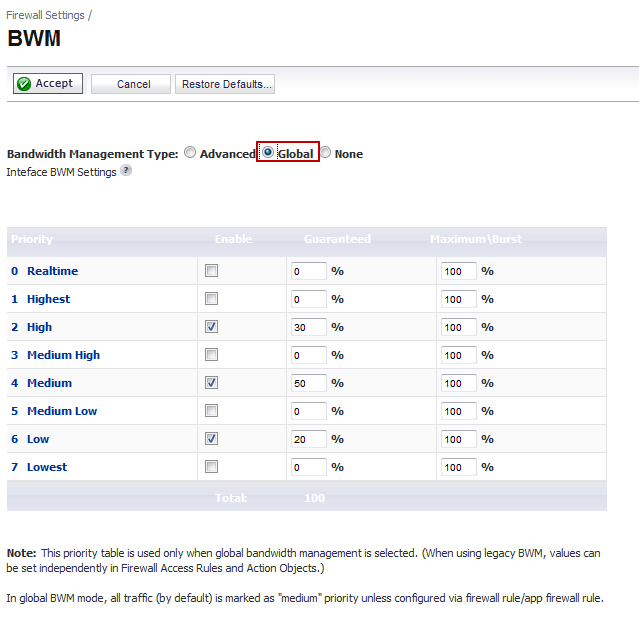

On the SonicWall Security Appliance, go to Firewall Settings > BWM.
2
Set the Bandwidth Management Type option to Global.

3
Enable the priorities that you want by selecting the appropriate check boxes in the Enable column.
*
NOTE: You must enable the priorities in this dialog to be able to configure these priorities in Access Rules, App Rules, and Action Objects.
4
Enter the Guaranteed bandwidth percentage that you want for each selected priority.
5
Enter the Maximum\Burst bandwidth percentage that you want for each selected priority.
6
Click Accept.
