Configuring DHCP Generic Options for DHCP Lease Scopes

This section provides configuration tasks for DHCP generic options for lease scopes.

*
NOTE: Before generic options for a DHCP lease scope can be configured, a static or dynamic DHCP server lease scope must be created.

The DHCP Option Numbers provides a list of DHCP options by RFC-assigned option number.

To configure DHCP generic options for DHCP server lease scopes:
1

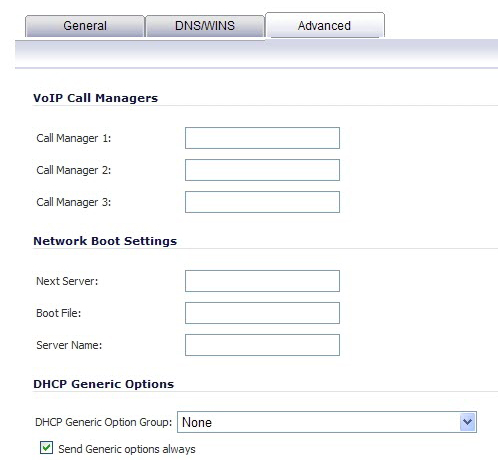

If modifying an existing DHCP lease scope, locate the lease scope under DHCP Server Lease Scopes on the Network > DHCP Server page and click the Configure icon, then click the Advanced tab. If creating a new DHCP lease scope, click the Advanced tab.

2
Select a DHCP option or option group in the DHCP Generic Option Group drop-down menu.

When the Network Boot Settings fields are configured for use with PXE, select PXE here.

3
To always use DHCP options for this DHCP server lease scope, check the box next to Send Generic options always.
4
Click OK.
