Deep Packet Inspection of Secure Socket Layer (DPI-SSL) extends SonicWALL’s Deep Packet Inspection technology to allow for the inspection of encrypted HTTPS traffic and other SSL-based traffic. The SSL traffic is decrypted transparently, scanned for threats and then re-encrypted and sent along to its destination if no threats or vulnerabilities are found. DPI-SSL provides additional security, application control, and data leakage prevention for analyzing encrypted HTTPS and other SSL-based traffic.
The following security services and features are capable of utilizing DPI-SSL:
DPI-SSL has two main deployment scenarios:
|
•
|
Client DPI-SSL: Used to inspect HTTPS traffic when clients on the SonicWALL security
appliance’s LAN access content located on the WAN.
|
|
•
|
Server DPI-SSL: Used to inspect HTTPS traffic when remote clients connect over the WAN
to access content located on the SonicWALL security appliance’s LAN.
|
The DPI-SSL feature is available in SonicOS Enhanced 5.6. The following table shows which platforms support DPI-SSL and the maximum number of concurrent connections on which the appliance can perform DPI-SSL inspection.
TThe Client DPI-SSL deployment scenario typically is used to inspect HTTPS traffic when clients on the LAN browse content located on the WAN. In the Client DPI-SSL scenario, the SonicWALL UTM appliance typically does not own the certificates and private keys for the content it is inspecting. After the appliance performs DPI-SSL inspection, it re-writes the certificate sent by the remote server and signs this newly generated certificate with the certificate specified in the Client DPI-SSL configuration. By default, this is the SonicWALL certificate authority (CA) certificate, or a different certificate can be specified. Users should be instructed to add the certificate to their browser’s trusted list to avoid certificate trust errors.
The following sections describe how to configure Client DPI-SSL:

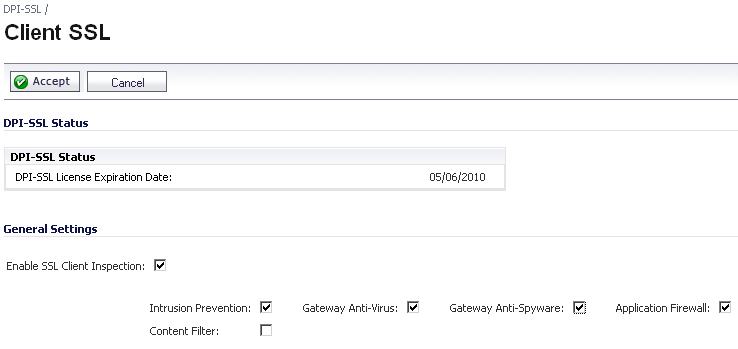

To enable Client DPI-SSL inspection, perform the following steps:
|
1.
|
Navigate to the
DPI-SSL > Client SSL
page.
|
|
2.
|
Select the
Enable SSL Inspection
checkbox.
|
|
3.
|
Select which of the following services to perform inspection with:
Intrusion Prevent
, Gateway Anti-Virus
, Gateway Anti-Spyware
, Application Firewall
, and Content Filter
.
|
|
4.
|
Click
Accept
.
|
By default, the DPI-SSL applies to all traffic on the appliance when it is enabled. You can configure an Inclusion/Exclusion list to customize which traffic DPI-SSL inspection will apply to. The Inclusion/Exclusion list provides the ability to specify certain objects, groups, or hostnames. In deployments that are processing a large amount of traffic, it can be useful to exclude trusted sources in order to reduce the CPU impact of DPI-SSL and to prevent the appliance from reaching the maximum number of concurrent DPI-SSL inspected connections.
The Inclusion/Exclusion section of the Client SSL page contains four options for specifying the inclusion list:
|
•
|
On the
Address Object/Group
line, select an address object or group from the Exclude
pulldown menu to exempt it from DPI-SSL inspection.
|
|
•
|
On the
Service Object/Group
line, select a service object or group from the Exclude
pulldown menu to exempt it from DPI-SSL inspection.
|
|
•
|
On the
User Object/Group
line, select a user object or group from the Exclude
pulldown menu to exempt it from DPI-SSL inspection.
|
|
Tip
|
The
Include
pulldown menu can be used to fine tune the specified exclusion list. For example, by selecting the Remote-office-California
address object in the Exclude
pulldown and the Remote-office-Oakland
address object in the Include
pulldown.
|
|
•
|
The
Common Name Exclusions
section is used to add domain names to the exclusion list. To add a domain name, type it in the text box and click Add
.
|
|
•
|
Click
Apply
at the top of the page to confirm the configuration.
|
By default, DPI-SSL uses the Default SonicWALL DPI-SSL CA Certificate to re-sign traffic that has been inspected. Optionally, users can specify that another certificate will be used. To use a custom certificate, you must first import the certificate to the SonicWALL UTM appliance:
|
1.
|
Navigate to the
System > Certificates
page.
|
|
2.
|
Click
Import Certificate
.
|
|
3.
|
Select the
Import a local end-user certificate with private key from a PKCS#12 (.p12
or .pfx) encoded file
option.
|
|
4.
|
After the certificate has been imported, you must configure it on the Client DPI-SSL page:
|
1.
|
Navigate to the
DPI-SSL > Client SSL
page.
|
|
2.
|
Scroll down to the
Certificate Re-Signing Authority
section and select the certificate from the pulldown menu.
|
|
3.
|
Click
Apply
.
|
For help with creating PKCS-12 formatted files, see “Creating PKCS-12 Formatted Certificate File” .
In the previous section we described how to configure a re-signing certificate authority. In order for re-signing certificate authority to successfully re-sign certificates browsers would have to trust this certificate authority. Such trust can be established by having re-signing certificate imported into the browser's trusted CA list.
|
•
|
Internet Explorer: Go to
Tools > Internet Options
, click the Content
tab and click Certificates
. Click the Trusted Root Certification Authorities
tab and click Import
. The Certificate Import Wizard
will guide you through importing the certificate.
|
|
•
|
Firefox: Go to
Tools > Options
, click the Advanced
tab and then the Encryption
tab. Click View Certificates
, select the Authorities
tab, and click Import
. Select the certificate file, make sure the Trust this CA to identify websites
check box is selected, and click OK
.
|
|
•
|
Mac: Double-click the certificate file, select
Keychain menu
, click X509 Anchors
, and then click OK
. Enter the system username and password and click OK
.
|
PKCS12 formatted certificate file can be created using Linux system with OpenSSL. In order to create a PKCS-12 formatted certificate file, one needs to have two main components of the certificate:
|
•
|
For example, Apache HTTP server on Linux has its private key and certificate in the following locations:
With these two files available, run the following command:
In this example out.p12 will become the PKCS-12 formatted certificate file and server.key and server.crt are the PEM formatted private key and the certificate file respectively.
After the above command, one would be prompted for the password to protect/encrypted the file. After the password is chosen, the creation of PKCS-12 formatted certificate file is complete and it can be imported into the UTM appliance.
To perform SonicWALL Content Filtering on HTTPS and SSL-based traffic using DPI-SSL, perform the following steps:
|
1.
|
Navigate to the
DPI-SSL > Client SSL
page
|
|
2.
|
|
3.
|
Click
Apply
.
|
|
4.
|
|
5.
|
Uncheck the
Enable IP based HTTPS Content Filtering
checkbox.
|
|
7.
|
Click
Apply
.
|
|
Note
|
For content filtering over DPI-SSL, the first time HTTPS access is blocked result in a blank
page being displayed. If the page is refreshed, the user will see the SonicWALL block page.
|
Enable Application Firewall checkbox on the Client DPI-SSL screen and enable Application Firewall on the Application Firewall >Policies screen.
|
1.
|
Navigate to the
DPI-SSL > Client SSL
page
|
|
2.
|
|
3.
|
Click
Apply
.
|
|
4.
|
Navigate to the
Application Firewall > Policies
page.
|
|
5.
|
Enable
Application Firewall
.
|
|
6.
|
Configure an
HTTP Client policy
to block Microsoft Internet Explorer browser.
|
|
7.
|
|
8.
|
DPI-SSL also supports Application Level Bandwidth Management over SSL tunnels. Application Firewall HTTP bandwidth management policies also applies to content that is accessed over HTTPS when DPI-SSL is enabled for Application Firewall.
