SSL VPN > Status

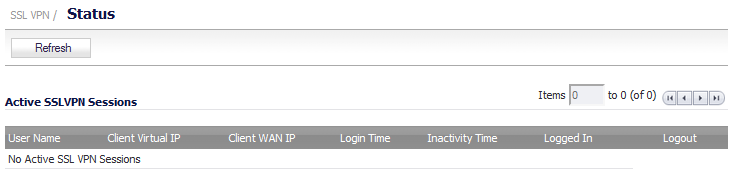

The SSL VPN > Status page displays a summary of active NetExtender sessions, including the name, the PPP IP address, the physical IP address, login time, length of time logged in and logout time.

The following table provides a description of the status items.



Table 75. SSL VPN status items

Status Item	Description
User Name	The user name.
Client Virtual IP	The IP address assigned to the user from the client IP address
Client WAN IP	The physical IP address of the user.
Login Time	The amount of time since the user first established connection with the SSL VPN appliance, expressed as number of days and time (HH:MM:SS).
Inactivity Time	Duration of time the user has been inactive.
Logged In	The time when the user initially logged in.
Logout	Provides the ability to logout a NetExtender session.
