Configuring a Port Mirroring Group

To create a new port mirroring group:
1

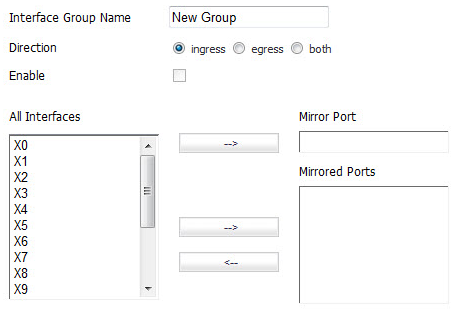

On the Switching > Port Mirroring page, click the New Group button. The Edit Mirror Group dialog displays.

2
Enter a descriptive name for the group into the Interface Group Name field.
3
For the Direction, select one of the following:
•
ingress – To monitor traffic arriving on the mirrored port(s).
•
egress – To monitor traffic being sent out on the mirrored port(s).
•
both – To monitor traffic in both directions on the mirrored port(s).
4
In the All Interfaces list:
a
Select the port to which to mirror the traffic.
b
Click the top Right Arrow button to move it to the Mirror Port field. You must use an unassigned port as the mirror port.
5
In the All Interfaces list:
a
Select one or more ports to be monitored.
b
Click the lower Right Arrow button to move the port(s) to the Mirrored Ports field.
6
Click OK.
7
To enable mirroring, on Groups table, click the Enable checkbox for the mirrored group.
