NOTE: To display just the Interface Traffic Statistics table, click the Collapse button for the Interface Settings table.
|
NOTE: To display just the Interface Traffic Statistics table, click the Collapse button for the Interface Settings table.
|

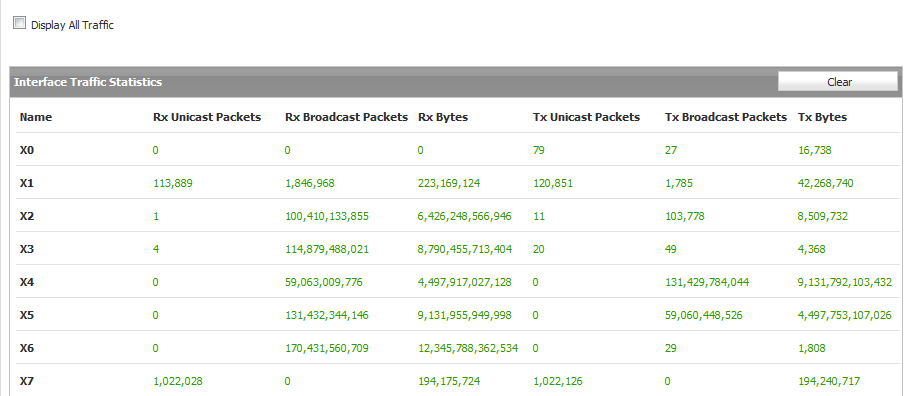

The Interface Traffic Statistics table lists, for each interface, received and transmitted information for all configured interfaces, including VLAN sub-interfaces:
|
•
|
Rx Unicast Packets - Number of point-to-point communications received by the interface.
|
|
•
|
Rx Broadcast Packets - Number of multipoint communications received by the interface.
|
|
•
|
RX Bytes - Volume of data, in bytes, received by the interface.
|
|
•
|
Tx Unicast Packets - Number of point-to-point communications transmitted by the interface.
|
|
•
|
Tx Broadcast Bytes - Number of mutlipoint communications received by the interface.
|
|
•
|
Tx Bytes - Volume of data, in bytes, transmitted by the interface.
|
To clear the current statistics, click the Clear button at the top right of the Interface Traffic Statistics table title.
