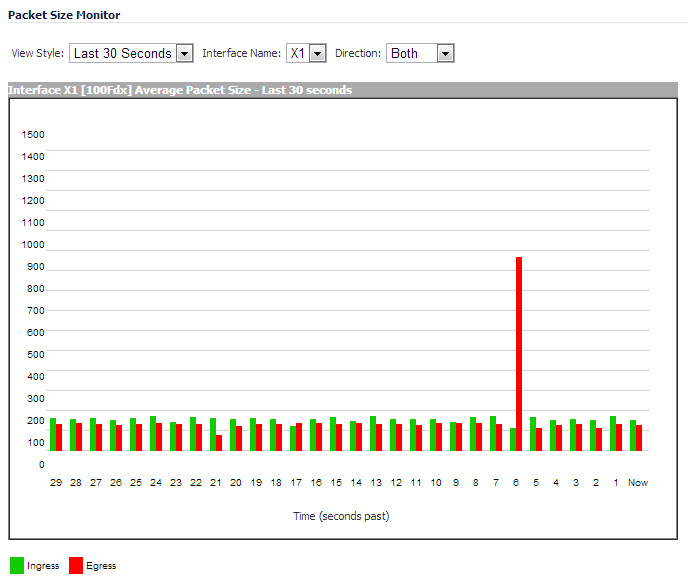

The Packet Size Monitor displays sizes of packets on the interfaces on the SonicWall security appliance. You can select from four time periods, ranging from the last 30 seconds to the last 30 days.
|
1
|
Select one of the following from the View Style drop-down list:
|
|
2
|
Select the physical interface to view from the Interface Name drop-down list.
|
|
3
|
In the Direction drop-down list, select one of the following:
|
|
•
|
Both – Select for packets traveling both inbound and outbound
|
|
•
|
Ingress – Select for packets arriving on the interface
|
|
•
|
Egress – Select for packets departing from the interface
|
