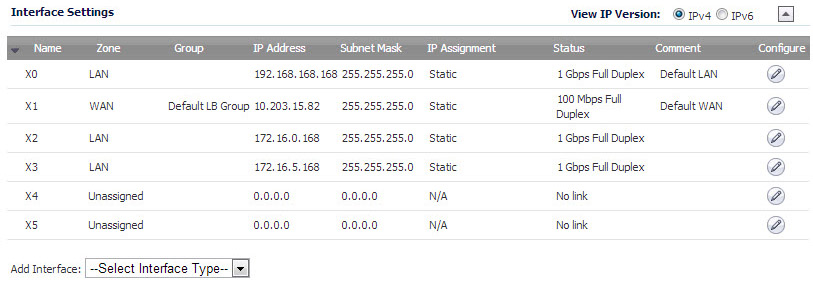

Interface Settings

The Interface Settings table lists the following information for each interface:

•
Name - listed as X0 through X8 and W0, depending on your SonicWall security appliance model.
*
NOTE: The X0 and X1 gigabit interfaces are for LAN and WAN, respectively. On the TZ 210 Series, X0 and X1 are the only gigabit interfaces. X2 is the only gigabit interface for the NSA 240.
•
Zone - LAN, DMZ, WAN, and WLAN are listed by default. As zones are configured, the names are listed in this column.
•
Group - the group to which the interface belongs.
•
IP Address - IP address assigned to the interface.
•
Subnet Mask - the network mask assigned to the subnet.
•
IP Assignment - the main page displays one of the following types of IP assignments, based on the zone type of the interfaces:
•
Non-WAN: Static, Transparent, or Layer 2 Bridged Mode.
•
WAN: Static, DHCP, PPPoE, PPTP, or L2TP.
•
W0: Static (available on wireless appliances only)
•
Status - the link status and speed.
•
Comment - any user-defined comments.
•
Configure - click the Configure icon to display the Edit Interface dialog, which allows you to configure the settings for the specified interface.
