Extensible Authentication Protocol (EAP) Settings

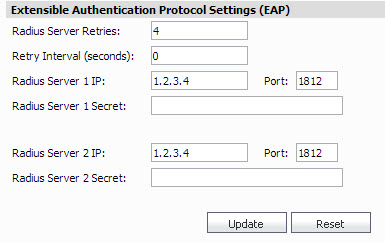

For all authentication types involving EAP, the lower part of the screen displays fields for RADIUS configuration.

For all authentication types involving EAP, complete the following:

1	Enter the desired amount of radius server retries in the Radius Server Retries text-field.

2	Enter the retry interval (in seconds) in the Retry Interval text-field.

3	Type the IP address of the primary RADIUS server into the Radius Server 1 IP field.

4	Type the port number used to communicate with the primary RADIUS server into the Port field.

5	Type the password for access to the primary Radius Server into the Radius Server 1 Secret field.

6	Type the IP address of the secondary RADIUS server into the Radius Server 2 IP field.

7	Type the port number used to communicate with the secondary RADIUS server into the Port field.

8	Type the password for access to the secondary Radius Server into the Radius Server 2 Secret field.

9	Do one of the following:

•	To apply the settings, click Update.

•	To clear all screen settings and start over, click Reset.
