Routes

This section describes the UMA appliance Network > Routes page, used to configure default or alternate network routes.

The default route is generally populated with the Default Gateway, specified in the Network > Settings page.

To add an alternate route, complete the following:

1	Click Add.

2	Enter the route information in the following field:

•	Destination Network

•	Network Mask

•	Gateway Address

NOTE: These fields can accept/display IPv4 and IPv6 addresses.

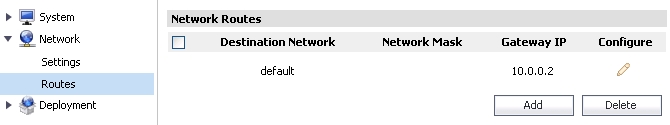

3	Click Add. The new route populates in the Network Routes table.
