Settings

This section describes the UMH/UMA System > Settings page, used to manage manual software or firmware upgrades and, on the appliance, reinitialization of factory default settings.

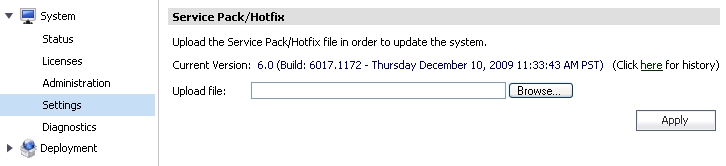

The UMH System > Settings page is shown in the following figure:

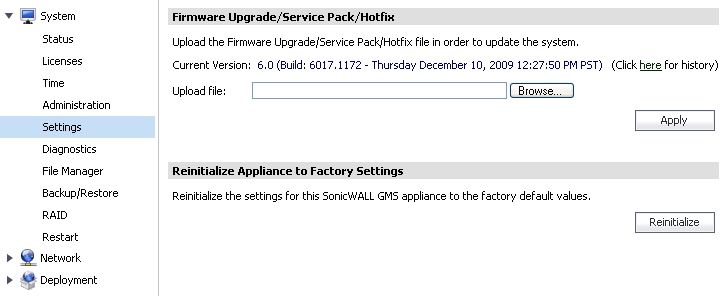

The UMA System > Settings page is shown in the following figure:

On the UMH, this page displays the current version of SonicWALL GMS running on the system, and provides a link to click for the history of upgrades on this system.

This page also allows the administrator to:

•	Upload a SonicWALL GMS Service Pack or Hotfix by uploading a valid software image from your local drive. After uploading the software, click Apply to reboot the system with the new version.

On the UMA, this page displays the current version of SonicWALL firmware running on the appliance, and provides a link to click for the history of upgrades on this system.

This page also allows the administrator to:

•	Upgrade firmware by uploading a valid firmware image from your local drive. SonicWALL approved service packs and hotfixes can also be installed through this screen. After uploading the firmware, click Apply to reboot the appliance with the new version.

•	Reinitialize the appliance to factory default settings by clicking Reinitialize. This will remove any of your current settings on the appliance and re-image the UMA with factory default settings. This option is only available for the UMA appliance.

NOTE: Be patient while the process is taking place. This process can take up to 15 minutes. Do NOT manually reset or cycle power to the device during this time.
