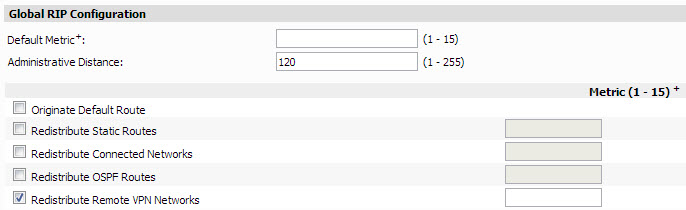

Global RIP Configuration

To configure the Global RIP settings, complete the following:

1	Select IPv4 or IPv6.

2	Enter a Default Metric (1-15).

3	Enter an Administrative Distance (1-255)

4	Select or deselect the desired check boxes and enter metrics for the following:

•	Originate Default Route

•	Redistribute Static Routs

•	Redistribute Connected Networks

•	Redistribute OSPF Routs

•	Redistribute Remote VPN Networks

5	Click Update.
