Viewing and Managing ES Status

The General > Status windows displays both general deployment status, as well as individual appliance status for Email Security appliances. Views available in the Status screen are:

•	Global ES Status

•	Individual ES Appliance Status

Global ES Status

The Global status window displays information about all Email Security devices in the current GMS deployment.

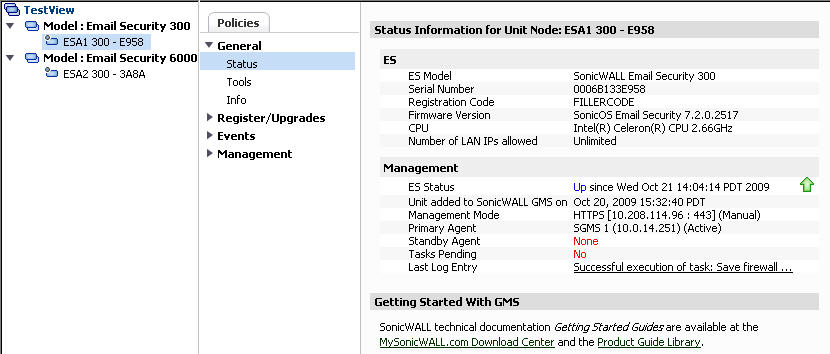

Individual ES Appliance Status

The individual appliance status window displays information about the currently selected Email Security appliance.

General Appliance Status Information

The General > Status screen provides the following appliance information:



Table 48. Appliance information

Status Item	Description
Model	The ES model number
Serial Number	The ES serial number
Firmware Version	The ES firmware version number
CPU	The ES CPU information
Number of LAN IPs allowed	The number of LAN IPs allowed by the ES
Status	The current status of the ES appliance, either Up, Down or Unacquired
Unit added to SonicWALL GMS on	The date and time the ES appliance was added to GMS
Management Mode	The management mode used to access the ES.
Primary Agent	This agent specifies the IP address of the SonicWALL GMS agent server that is the primary agent managing the SonicWALL ES appliance
Standby Agent	The IP address of the secondary agent used in case of failure
Tasks Pending	The number of tasks pending for the ES
Last Log Entry	The scheduled task to be executed
ES Information	The up time since last reboot in days, hours, minutes, seconds
