SRA Status

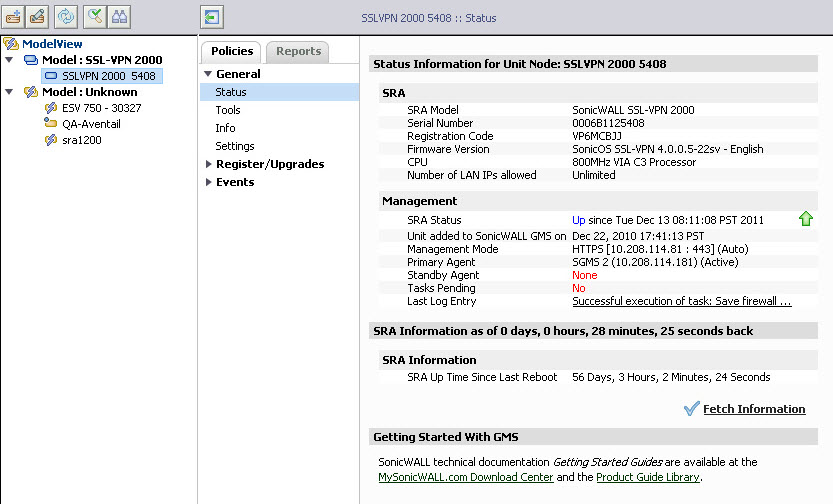

The General > Status section provides the current status of the SRA appliance and allows for an instant update of appliance information using Fetch Information.

The General > Status section provides the following appliance information:



Table 44. General > Status Information

SRA Status Item	Description
SRA Model	The SRA model number.
Serial Number	The SRA serial number.
Registration Code	The mysonicwall.com registration code number.
Firmware Version	The SRA firmware version information.
CPU	The SRA CPU information.
Number of LAN IPs allowed	The number of LAN IPs allowed by the SRA.
SRA Status	The current status of the SRA appliance, either Up, Down or Unacquired.
Unit added to SonicWALL GMS on	The date and time the SRA appliance was added to GMS.
Management Mode	The management mode used to access the SRA.
Primary Agent	The IP address of the primary agent.
Secondary Agent	The IP address of the secondary agent.
Tasks Pending	The number of tasks pending for the SRA.
Last Log Entry	The last SonicWALL GMS system log event message for this device.
SRA Information	The up time since last reboot in days, hours, minutes, seconds.

Using Fetch Information

To update the General > Status section using Fetch Information, complete the following tasks:

1	Click Fetch Information. The update scheduler displays.



2	Select Immediate. Alternatively, you can select At and specify a date and time for SonicWALL GMS to execute the update.

3	Click Accept. It might take several seconds for GMS to fetch the appliance information. The latest status is displayed under General > Status.
