Status

This section describes the UMH/UMA System > Status page, used to view general status of the appliance hardware and licensed firmware.

NOTE: The UMH/UMA appliance and the GMS application both provide a system settings interface, referred to as “UMA” for the appliance and “UMH” in GMS software deployments. In either scenario, the switch icon is used to toggle between application and system interfaces.

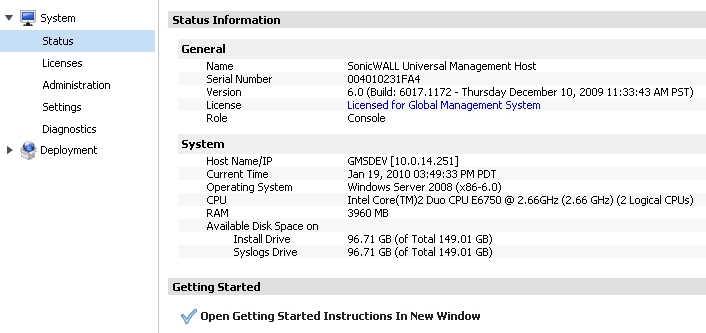

The UMH System > Status page is shown in the following figure:

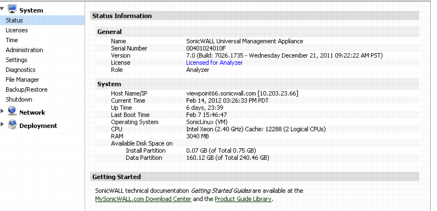

The UMH/UMA System > Status page is shown in the following figure:

This page identifies the following specifications:



Table 76. Specifications

Item	Usage
Name	Displays the user-friendly name of the system.
Serial Number	Displays the system identification number.
Version	Displays current firmware version and date.
License	Displays the Global Management System or ViewPoint license status.
Role	Displays configuration set in the Deployment > Roles section of the user interface.
Host Name / IP	Displays the system host name (for example, an FQDN such as mysystem.myhost.com) and IP address. This field can display IPv4 and IPv6 addresses.
Current Time	Displays the current date and time, based on your localized time zone settings
Operating System	Displays the system’s currently loaded operating system.
CPU	Displays basic specifications (speed and number of cores) for the system’s processor.
RAM	Displays amount of random access memory (RAM) installed on the system.
RAID Array (UMA only)	Displays type, status, and size of the currently installed RAID array.
Available Disk Space	Displays free space and total space, in gigabytes.
