3G/4G > Advanced

The 3G/4G > Advanced page is used to configure the following features:

•
Remotely Triggered Dial-Out Settings
•
Bandwidth Management
•
Connection Limit

Remotely Triggered Dial-Out Settings

The Remotely Triggered Dial-Out section enables you to remotely initiate a WAN modem connection. The following process describes how a Remotely Triggered Dial-Out call functions:

1
The network administrator initiates a modem connection to the Dell SonicWALL security appliance located at the remote office.
2
If the appliance is configured to authenticate the incoming call, it prompts the network administrator to enter a password. Once the call is authenticated, the appliance terminates the call.
3
The appliance then initiates a modem connection to its dial-up ISP, based on the configured dial profile.
4
The network administrator accesses the appliance’s web management interface to perform the required tasks.

Before configuring the Remotely Triggered Dial-Out feature, ensure that your configuration meets the following prerequisites:

•
The 3G/4G connection profile is configured for dial-on-data.
•
The Dell SonicWALL Security Appliance is configured to be managed using HTTPS, so that the device can be accessed remotely.
•
It is recommended that you enter a value in the Enable Inactivity Disconnect field. This field is located in the 3G/4G Profile Configuration window on the Parameters tab. See 3G/4G > Connection Profiles for more information. If you do not enter a value in this field, dial-out calls will remain connected indefinitely, and you will have to manually terminate sessions by clicking the Disconnect button.

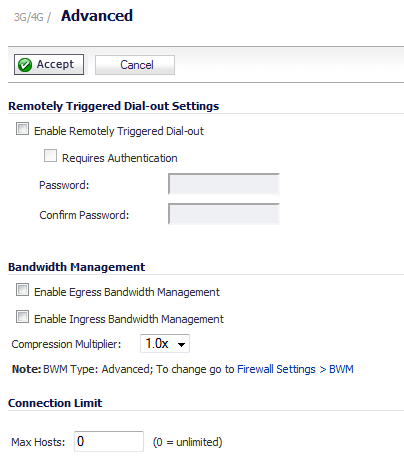

To configure Remotely Triggered Dial-Out, go the 3G/4G > Advanced screen.
1
Check the Enable Remotely Triggered Dial-Out checkbox.
2
(Optional) To authenticate the remote connection, select the Requires authentication checkbox.
•
Enter the password in the Password: and Confirm Password: fields.

Bandwidth Management

The Bandwidth Management section allows you to enable egress or ingress bandwidth management services on the 3G/4G interface.

*
NOTE: For information on configuring Bandwidth Management, see Firewall Settings > BWM .
To configure bandwidth management:
1
Click the Enable Egress Bandwidth Management checkbox.
2
Click the Enable Ingress Bandwidth Management checkbox.
3
Select the Compression Multiplier from the drop-down menu:

1.0x (default), 1.5x 2.0x, 2.5x, 3.0x, 3.5x, 4.0x

The Compression Multiplier applies to both egress and ingress bandwidths.

Connection Limit

The Connection Limit section allows you to set a host/node limit on the 3G/4G connection. This feature is especially useful for deployments where the 3G/4G connection is used as an overflow or in load-balanced situations to avoid over-taxing the connection.

In the Max Hosts field, enter the maximum number of hosts to allow when this interface is connected. The default value is 0, which allows an unlimited number of nodes.
