Linksys WRT54GS

The SRA appliance should be configured on the LAN switch of the Linksys wireless router. This guide assumes that your Linksys is assigned a single WAN IP, via DHCP by the cable ISP and is using the default LAN IP address scheme of 192.168.1.0/24.

*
NOTE: Version 2.07.1 Firmware or newer is recommended for this setup.

To configure your Linksys for operation with the SRA appliance, you must forward the SSL (443) port to the IP address of the SRA appliance.

1
Login to the Linksys device.
2

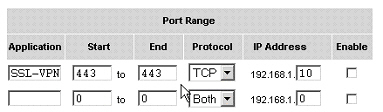

Navigate to the Applications & Gaming tab.

3
Enter the following information:


Table 42. Information to be added to Applications & Gaming tab

Application

SRA

The name for the port forwarded application.

Port Range Start

443

The starting port number used by the application

Port Range End

443

The ending port number used by the application

Protocol

TCP

The Dell SonicWALL SRA application uses TCP

IP Address

192.168.1.10

The IP address assigned to the SRA appliance.

Enable

Checked

Select the check box to enable the SSL port forwarding
4
With the configuration complete, click the Save Settings button on the bottom of the page.

The Linksys is now ready for operations with the SRA appliance.
