The System > Licenses page provides a link to activate, upgrade, or renew Dell SonicWALL Security Services licenses. From this page in the SRA management interface, you can manage all the Dell SonicWALL Security Services licenses for your SRA appliance.

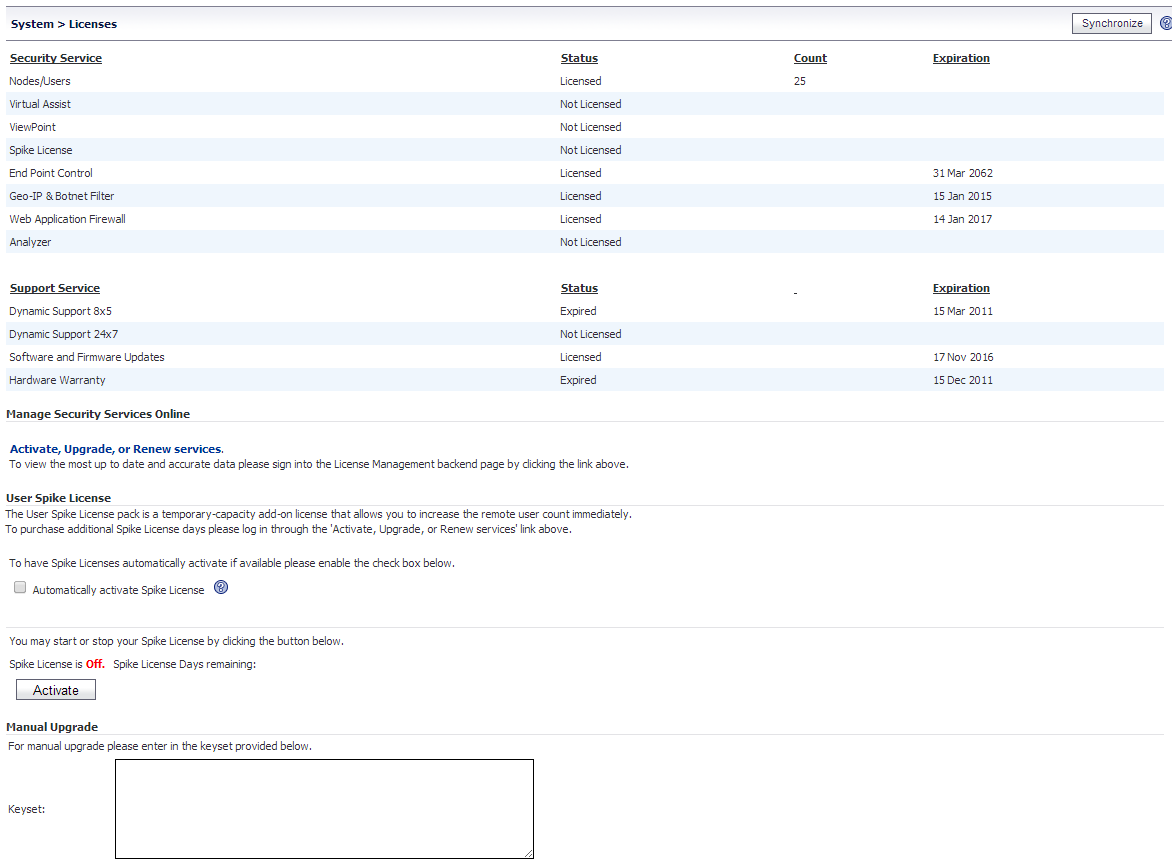

Figure 12. System > Licenses Page
The Security Services Summary table lists the number of Nodes/Users licenses and the available and activated security services on the SRA appliance.
The Security Service column lists all the available Dell SonicWALL Security Services and upgrades available for the security appliance. The Status column indicates if the security service is activated (Licensed), available for activation (Not Licensed, or for Spike License, Inactive), or no longer active (Expired). ViewPoint, Secure Virtual Assist, Spike License, Stateful High Availability (only on SRA 4200), and Web Application Firewall are licensed separately as upgrades.
The number of nodes (computer or other device connected to your appliance with an IP address) or users allowed by the license is displayed in the Count column. This number refers to the maximum number of simultaneous connections to the SRA appliance.
The Expiration column displays the expiration date for any licensed service that is time-based. For a Spike License, the Expiration column shows the number of days that the Spike License can be active before it expires. The days do not have to be consecutive.
The information listed in the Security Services Summary table is updated from the Dell SonicWALL licensing server every time the SRA appliance automatically synchronizes with it (hourly), or you can click the Synchronize button to synchronize immediately.
You can login to MySonicWALL directly from the System > Licenses page by clicking the link Activate, Upgrade, or Renew services. You can click this link to register your appliance, to purchase additional licenses for upgrading or renewing services, or to activate free trials.
