You can perform standard network diagnostic tests on the SRA appliance in the System > Diagnostics page.
|
1
|
|
2
|
In the Diagnostic Tool drop-down list, select Bandwidth Test, TCP Connection Test, DNS Lookup, Ping, Ping6, Traceroute, Traceroute6, SNMP Query, or Botnet Test.
|
These diagnostic tools perform the following functions:
|
Tests the connection to an IPv6 address or domain. Ping6 is meant for use with IPv6 addresses and networks. |
|
|
Identifies the route and number of hops needed to connect to a host or IP address. |
|
|
Identifies the route and number of hops needed to connect to an IPv6 address or domain. Traceroute 6 is meant for use with IPv6 addresses and networks. |
|
|
Looks up SNMP information from the selected MIB. SNMP must be enabled (System > Administration page) before a query can be performed. In the SNMP MIB drop-down list, select the MIB for which to display the values. The SNWL-SSLVPN-MIB is the SRA specific MIB that shows device statistics and licensing information. The SNWL-COMMON-MIB is a file common to all Dell SonicWALL products and shows product name, serial, firmware, ROM version, and asset number (user defined). The rest of the MIBs are standard SNMP MIBs including SNMPv2-MIB and All SNMP MIB-2, or you can select ALL MIBs. |
|
|
4
|
Click Enter.
|

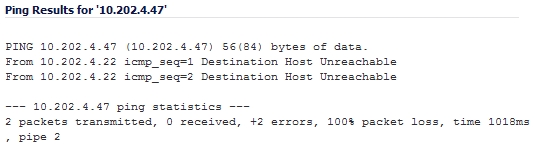

The results display at the bottom of the page.
