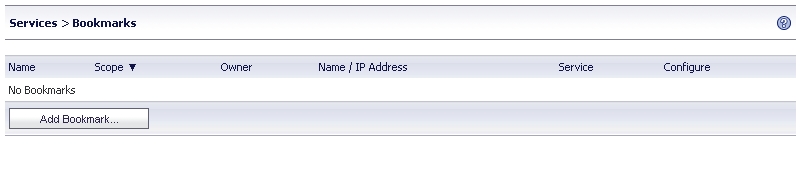

The Services > Bookmarks page within the Web-based management interface provides a single interface for viewing bookmarks and access to configure bookmarks for users and groups.
To add a bookmark, navigate to the Services > Bookmarks screen within the management interface and select the Add Bookmark... button. The Add Bookmark window opens.
Complete the following steps to add a service bookmark:
|
1
|
Use the Bookmark Owner drop-down menu to select whether the bookmark is owned as a Global Bookmark, a Local Domain group bookmark, or a bookmark assigned to an individual User.
|
|
2
|
Specify the Bookmark Name field with a friendly name for the service bookmark.
|
|
3
|
Fill-in the Name or IP Address field with hostname, IP address, or IPv6 address for the desired bookmark. IPv6 addresses should begin with “[“ and end with “]”.
|
Some services can run on non-standard ports, and some expect a path when connecting. Depending on the choice in the Service field, format the Name or IP Address field like one of the examples shown in the following table.
|
10.20.30.4:5901 (mapped to session 1) JBJONES-PC.sv.us.sonicwall.com
NOTE: Do not use 10.20.30.4:1
TIP: For a bookmark to a Linux server, see the Tip below this table. |
||
|
10.20.30.4:6818 or [2008::1:2:3:4]:6818 |
||
|
10.20.30.4:6818 or [2008::1:2:3:4]:6818 |
||
|
10.20.30.4:6818 or [2008::1:2:3:4]:6818 |
||
|
204.212.170.11:8080 or [2008::1:2:3:4]:8080 |
||
|
server-3.company.net\sharedfolder\ |
||
|
NOTE: Port refers to the HTTP(S) port of Citrix Web Interface, not to the Citrix client port.
|
172.55.44.3:8080 or [2008::1:2:3:4]:8080 |
|
TIP: When creating a Virtual Network Computing (VNC) bookmark to a Linux server, you must specify the port number and server number in addition to the Linux server IP the Name or IP Address field in the form of ipaddress:port:server. For example, if the Linux server IP address is 192.168.2.2, the port number is 5901, and the server number is 1, the value for the Name or IP Address field would be 192.168.2.2:5901:1.
|
|
4
|
Use the Service drop-down menu to select the desired bookmark service. Use the following information for the chosen service to complete the building of the bookmark.
|
|
NOTE: If you select Terminal Services (RDP - ActiveX) while using a browser other than Internet Explorer, the selection is automatically switched to Terminal Services (RDP - Java). A popup dialog box notifies you of the switch.
|
|
•
|
In the Screen Size drop-down list, select the default terminal services screen size to be used when users execute this bookmark.
|
|
•
|
In the Colors drop-down list, select the default color depth for the terminal service screen when users execute this bookmark.
|
|
•
|
Optionally, enter the local path for this application in the Application and Path field.
|
|
•
|
In the Start in the following folder field, optionally enter the local folder in which to execute application commands.
|
|
•
|
Select the Login as console/admin session check box to allow login as console or admin. Login as admin replaces login as console in RDC 6.1 and newer.
|
|
•
|
Select the Enable wake-on-LAN check box to enable waking up a computer over the network connection. Selecting this check box causes the following new fields to be displayed:
|
|
•
|
MAC/Ethernet Address – Enter one or more MAC addresses, separated by spaces, of target hosts to wake.
|
|
•
|
Wait time for boot-up (seconds) – Enter the number of seconds to wait for the target host to fully boot up before cancelling the WOL operation.
|
|
•
|
Send WOL packet to host name or IP address – To send the WOL packet to the hostname or IP of this bookmark, select the Send WOL packet to host name or IP address check box, which can be applied in tandem with a MAC address of another machine to wake.
|
|
•
|
Check the Server is TS Farm check box if the bookmark will be used to launch a terminal service farm. A terminal service bookmark requires the client to have a compatible client installed to connect to the terminal server.
|
|
•
|
For RDP - ActiveX on Windows clients, expand Show client redirect options and select any of the redirect check boxes Redirect Printers, Redirect Drives, Redirect Ports, or Redirect SmartCards to redirect those devices on the local network for use in this bookmark session. You can hover your mouse pointer over these options to display tooltips that indicate requirements for certain actions.
|
To see local printers show up on your remote machine (Start > Settings > Control Panel > Printers and Faxes), select Redirect Ports as well as Redirect Printers.
|
•
|
For RDP - Java on Windows clients, or on Mac clients running Mac OS X 10.5 or above with RDC installed, expand Show advance Windows options and select the check boxes for any of the following redirect options: Redirect Printers, Redirect Drives, Redirect Ports, Redirect SmartCards, Redirect clipboard, or Redirect plug and play devices to redirect those devices or features on the local network for use in this bookmark session. You can hover your mouse pointer over the Help icon
 next to certain options to display tooltips that indicate requirements. |
To see local printers show up on your remote machine (Start > Settings > Control Panel > Printers and Faxes), select Redirect Ports as well as Redirect Printers.
Select the check boxes for any of the following additional features for use in this bookmark session: Display connection bar, Auto reconnection, Desktop background, Window drag, Menu/window animation, Themes, or Bitmap caching.
If the client application will be RDP 6 (Java), you can select any of the following options as well: Dual monitors, Font smoothing, Desktop composition, or Remote Application.
Remote Application monitors server and client connection activity; to use it, you need to register remote applications in the Windows 2008 RemoteApp list. If Remote Application is selected, the Java Console will display messages regarding connectivity with the Terminal Server.
|
•
|
Optionally select Automatically log in and select Use SSL-VPN account credentials to forward credentials from the current SRA session for login to the RDP server. Select Use custom credentials to enter a custom username, password, and domain for this bookmark. For more information about custom credentials, see Creating Bookmarks with Custom SSO Credentials .
|
|
•
|
In the Screen Size drop-down list, select the default terminal services screen size to be used when users execute this bookmark.
|
|
•
|
In the Colors drop-down list, select the default color depth for the terminal service screen when users execute this bookmark.
|
|
•
|
Select the Enable wake-on-LAN check box to enable waking up a computer over the network connection. Selecting this check box causes the following new fields to be displayed:
|
|
•
|
MAC/Ethernet Address – Enter one or more MAC addresses, separated by spaces, of target hosts to wake.
|
|
•
|
Wait time for boot-up (seconds) – Enter the number of seconds to wait for the target host to fully boot up before cancelling the WOL operation.
|
|
•
|
Send WOL packet to host name or IP address – To send the WOL packet to the hostname or IP of this bookmark, select the Send WOL packet to host name or IP address check box, which can be applied in tandem with a MAC address of another machine to wake.
|
|
•
|
Select the Login as console/admin session check box to allow login as console or admin. Login as admin replaces login as console in RDC 6.1 and newer.
|
|
•
|
Check the Server is TS Farm check box if the bookmark will be used to launch a terminal service farm. A terminal service bookmark requires the client to have a compatible client installed to connect to the terminal server.
|
|
•
|
Click Show Advanced Windows options and select the desired checkboxes for the following options: Desktop background, Menu/window animation, Show window contents while dragging/resizing, and Enable Compression.
|
|
•
|
Optionally select Automatically log in and select Use SSL-VPN account credentials to forward credentials from the current SRA session for login to the RDP server. Select Use custom credentials to enter a custom username, password, and domain for this bookmark. For more information about custom credentials, see Creating Bookmarks with Custom SSO Credentials .
|
|
•
|
In the Screen Size drop-down list, select the default terminal services screen size to be used when users execute this bookmark.
|
|
•
|
In the Colors drop-down list, select the default color depth for the terminal service screen when users execute this bookmark.
|
|
•
|
Select the Enable wake-on-LAN check box to enable waking up a computer over the network connection. Selecting this check box causes the following new fields to be displayed:
|
|
•
|
MAC/Ethernet Address – Enter one or more MAC addresses, separated by spaces, of target hosts to wake.
|
|
•
|
Wait time for boot-up (seconds) – Enter the number of seconds to wait for the target host to fully boot up before cancelling the WOL operation.
|
|
•
|
Send WOL packet to host name or IP address – To send the WOL packet to the hostname or IP of this bookmark, select the Send WOL packet to host name or IP address check box, which can be applied in tandem with a MAC address of another machine to wake.
|
|
•
|
Application and Path — The vale entered here is a valid path of an alternate shell or an executable application.
|
|
•
|
Command-line arguments — Enter the command line arguments for the RemoteApp.
|
|
•
|
Start in the following folder — Enter the folder you want to start with.
|
|
•
|
Select the Login as console/admin session check box to allow login as console or admin. Login as admin replaces login as console in RDC 6.1 and newer.
|
|
•
|
Check the Server is TS Farm check box if the bookmark will be used to launch a terminal service farm. A terminal service bookmark requires the client to have a compatible client installed to connect to the terminal server.
|
|
•
|
Click Show Advanced Windows options and select the desired checkboxes for the following options: Desktop background, Menu/window animation, Show window contents while dragging/resizing, and View styles. There is also an RDP6 option for Font smoothing.
|
|
•
|
Optionally select Automatically log in and select Use SSL-VPN account credentials to forward credentials from the current SRA session for login to the RDP server. Select Use custom credentials to enter a custom username, password, and domain for this bookmark. For more information about custom credentials, see Creating Bookmarks with Custom SSO Credentials .
|
|
•
|
In the Encoding drop-down menu, select the desired encoding transfer format.
|
|
•
|
Optionally, if available, use the Compression Level drop-down menu to select the desired compression level for data.
|
|
•
|
Optionally, if available, select the JPEG image file quality level using the JPEG Image Quality drop-down menu.
|
|
•
|
In the Cursor Shape Updates drop-down menu, select to either Enable, Disable, or Ignore these updates.
|
|
•
|
Enable or disable the CopyRect function using the associated check box.
|
|
•
|
Enable or disable the use of only Restricted Colors by using the associated check box.
|
|
•
|
Enable or disable the ability to reverse control of mouse buttons two and three using the associated check box.
|
|
•
|
Enable the View Only check box to control to prevent taking control over VNC.
|
|
•
|
Enable the Share Desktop check box to allow desktop view to be shared over VNC.
|
|
•
|
Enable the View Only check box to control to prevent taking control over VNC.
|
|
•
|
Enable the Share Desktop check box to allow desktop view to be shared over VNC.
|
|
•
|
In the Resource Window Size drop-down list, select the default screen size to be used for Citrix sessions when users execute this bookmark.
|
|
•
|
Select to have an Auto Launch Method or Manual Launch Method as the Launch Method for this bookmark. A new Citrix bookmark is Auto by default. The launch sequence is as follows: ActiveX, Java, and HTML5. Selecting Manual allows you to change, enable, or disable the launch methods.
|
|
•
|
Select the Disable client detection by Citrix server check box to disable the client detection done by the Citrix server when using the bookmark. The SRA appliance always performs a Citrix client detection when using Citrix. Enabling client detection on the Citrix server makes this client detection redundant.
|
|
•
|
|
•
|
To explicitly set the Citrix ICA server address for the Citrix ICA session, select the Always use specified Citrix ICA Server check box and then type the server IP address into the ICA Server Address field.
|
|
•
|
Select the Display Bookmark to Mobile Connect clients check box to displaying this Citrix bookmark in Mobile Connect clients. Support will vary between devices and may require supported third-party applications to be installed.
|
|
•
|
Optionally select Automatically log in and select Use SSL-VPN account credentials to forward credentials from the current SRA session for login to the Web server. Select Use custom credentials to enter a custom username, password, and domain for this bookmark. For more information about custom credentials, see Creating Bookmarks with Custom SSO Credentials .
|
|
•
|
Optionally select Automatically log in and select Use SSL-VPN account credentials to forward credentials from the current SRA session for login to the secure Web server. Select Use custom credentials to enter a custom username, password, and domain for this bookmark. For more information about custom credentials, see Creating Bookmarks with Custom SSO Credentials .
|
|
•
|
HTTPS Mode — The HTTPS mode is used to encrypt Web communication by using the SSL protocol.
|
|
•
|
Disable security warning — If this bookmark does not refer to an Application Offloaded Web site and this checkbox is disabled, then a security warning dialog is displayed.
|
|
•
|
Automatically log in — Enable Virtual Host Domain SSO for this bookmark. If the host in the bookmark refers to a portal which has the same shared domain with this portal, it could be logged in automatically with this portal’s credential.
|
|
•
|

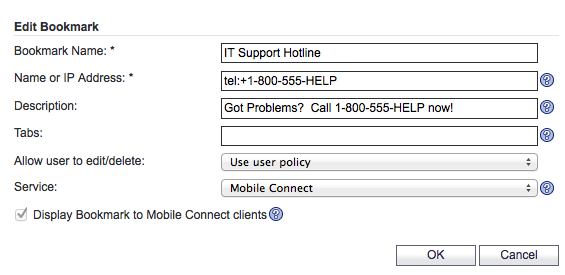

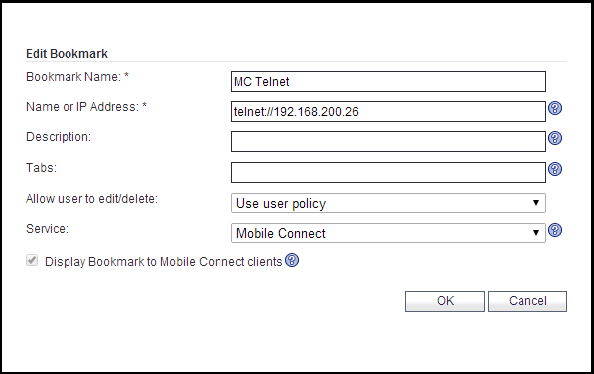

Enter the Bookmark Name and the Name or IP Address. The Name or IP Address field is the custom URL scheme.
|
|
•
|
Enable the Display Bookmark to Mobile Connect clients check box to send bookmark information to Mobile Connect clients.
|

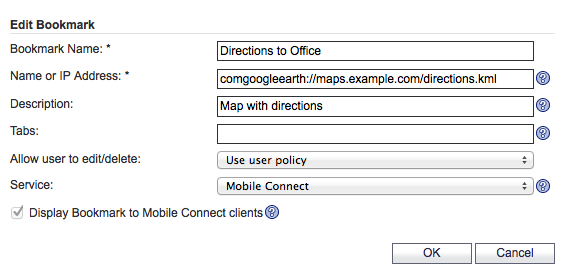

First, the user must create the bookmark with the URL scheme:

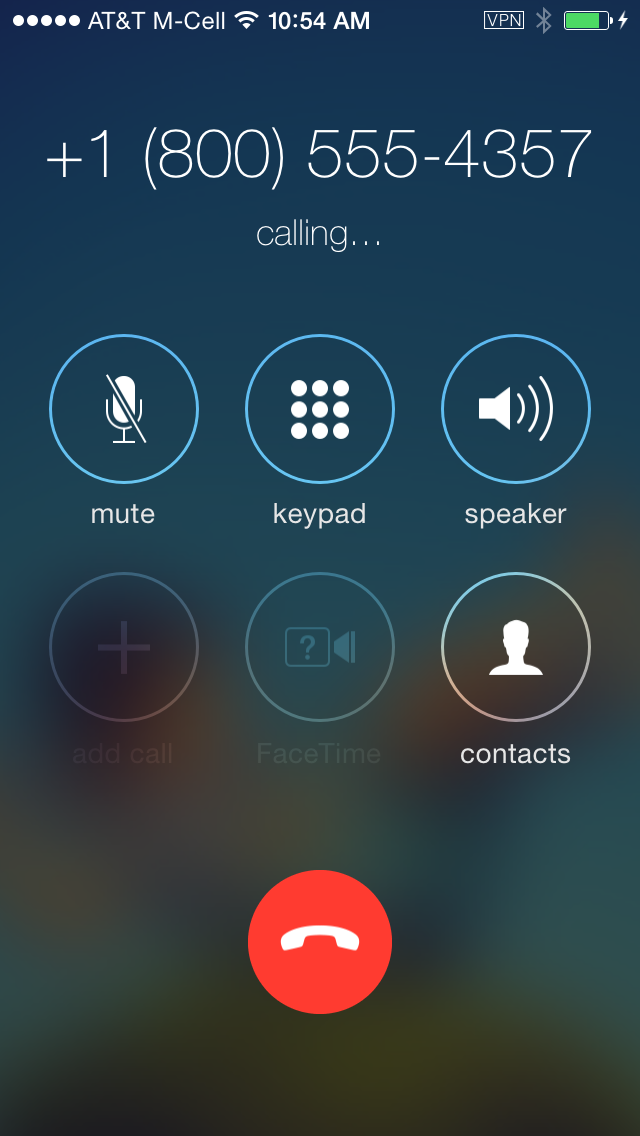

This bookmark is now available to access from your mobile device.

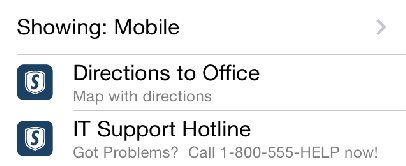

Click the newly added bookmark. For the “Directions to Office” bookmark, a Google Map displays:

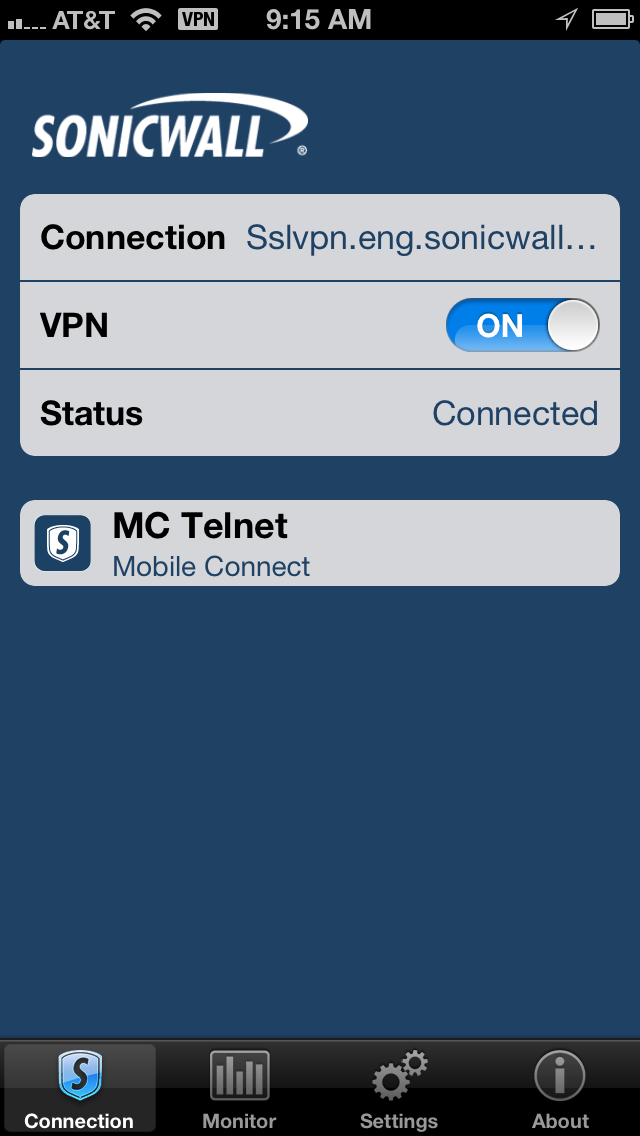

This bookmark is now available to access from your mobile device.
|
•
|
To allow users to use a Java Applet for File Shares that mimics Windows functionality, select the Use File Shares Java Applet check box.
|
|
•
|
To restrict access on the client UI, select the Set user to access the specific files/folders check box. To completely restrict access, navigate to the Services > Policies page to set a policy for access constraints. For more information, see Adding a Policy .
|
|
•
|
Optionally select Automatically log in and select Use SSL-VPN account credentials to forward credentials from the current SRA session for login to the RDP server. Select Use custom credentials to enter a custom username, password, and domain for this bookmark. For more information about custom credentials, see Creating Bookmarks with Custom SSO Credentials .
|
|
•
|
Enable the Display Bookmark to Mobile Connect clients check box to send bookmark information to Mobile Connect clients.
|
DFS file shares on a stand-alone root are not affected by this Microsoft restriction.
|
•
|
Expand Show advanced server configuration to select an alternate value in the Character Encoding drop-down list. The default is Standard (UTF-8).
|
|
•
|
Optionally select Automatically log in and select Use SSL-VPN account credentials to forward credentials from the current SRA session for login to the FTP server. Select Use custom credentials to enter a custom username, password, and domain for this bookmark. For more information about custom credentials, see Creating Bookmarks with Custom SSO Credentials .
|
|
•
|
Optionally select the Automatically accept host key check box.
|
|
•
|
If using an SSHv2 server without authentication, such as a Dell SonicWALL firewall, you can select the Bypass username check box.
|
|
5
|
To display the bookmark (Desktop, Web, and Terminal services only) on mobile devices using Mobile Connect 2.0 or higher, check the Display Bookmark to Mobile Connect clients check box.
|
|
6
|
Click OK to update the configuration. Once the configuration has been updated, the new user bookmark will be displayed in the Services >Bookmarks window.
|
To edit a service bookmark, navigate to the Services > Bookmarks screen. Click on the pencil icon in the Configure column. A new Edit Bookmark window will open with the bookmark’s current configuration. Make all desired adjustments and select OK. The edited bookmark will still display in the Services > Bookmarks window.
To delete a configured bookmark, navigate to the Services > Bookmarks screen. Click on the “X” icon in the Configure column. A dialog box will open and ask if you are sure you want to delete the specified bookmark. Click OK to delete the bookmark. The bookmark will no longer appear in the Services > Bookmarks screen.
