IPS Sniffer Mode

Supported on Dell SonicWALL Security Appliances, IPS Sniffer Mode is a variation of Layer 2 Bridged Mode that is used for intrusion detection. IPS Sniffer Mode configuration allows an interface on the firewall to be connected to a mirrored port on a switch to examine network traffic. Typically, this configuration is used with a switch inside the main gateway to monitor traffic on the intranet.

In Figure 4, traffic flows into a switch in the local network and is mirrored through a switch mirror port into a IPS Sniffer Mode interface on the Dell SonicWALL Security Appliance. The firewall inspects the packets according to the settings configured on the Bridge-Pair. Alerts can trigger SNMP traps which are sent to the specified SNMP manager via another interface on the firewall. The network traffic is discarded after the firewall inspects it.

The WAN interface of the firewall is used to connect to the firewall Data Center for signature updates or other data.

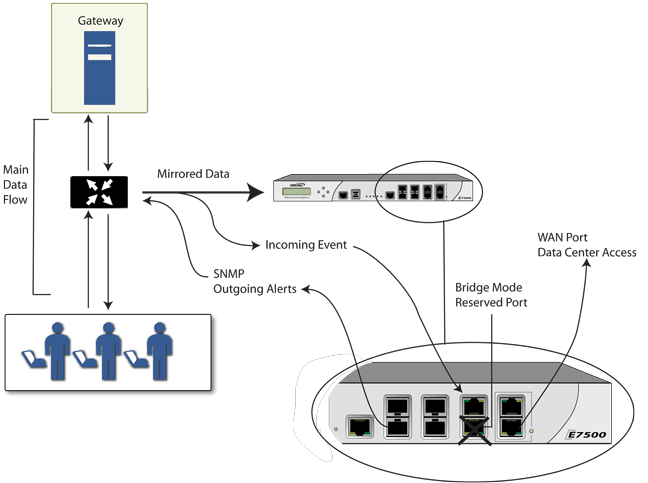

Figure 4. IPS Sniffer Mode: Network diagram

In IPS Sniffer Mode, a Layer 2 Bridge is configured between two interfaces in the same zone on the firewall, such as LAN-LAN or DMZ-DMZ. You can also create a custom zone to use for the Layer 2 Bridge. Only the WAN zone is not appropriate for IPS Sniffer Mode.

The reason for this is that SonicOS detects all signatures on traffic within the same zone such as LAN-LAN traffic, but some directional specific (client-side versus server-side) signatures do not apply to some LAN-WAN cases.

Either interface of the Layer 2 Bridge can be connected to the mirrored port on the switch. As network traffic traverses the switch, the traffic is also sent to the mirrored port and from there into the firewall for deep packet inspection. Malicious events trigger alerts and log entries, and if SNMP is enabled, SNMP traps are sent to the configured IP address of the SNMP manager system. The traffic does not actually continue to the other interface of the Layer 2 Bridge. IPS Sniffer Mode does not place the firewall inline with the network traffic, it only provides a way to inspect the traffic.

The Edit Interfaces dialog available from the Network > Interfaces page provides a checkbox called Only sniff traffic on this bridge-pair for use when configuring IPS Sniffer Mode. When selected, this checkbox causes the firewall to inspect all packets that arrive on the L2 Bridge from the mirrored switch port. The Never route traffic on this bridge-pair checkbox should also be selected for IPS Sniffer Mode to ensure that the traffic from the mirrored switch port is not sent back out onto the network.

For detailed instructions on configuring interfaces in IPS Sniffer Mode, see Configuring IPS Sniffer Mode .

Sample IPS Sniffer Mode Topology

This example topology uses SonicWALL IPS Sniffer Mode in a Hewlett Packard ProCurve switching environment. This scenario relies on the ability of HP’s ProCurve Manager Plus (PCM+) and HP Network Immunity Manager (NIM) server software packages to throttle or close ports from which threats are emanating.

This method is useful in networks where there is an existing firewall that remains in place, but you wish to use the firewall’s security services as a sensor.

Figure 5. IPS Sniffer Mode: Sample topology

In this deployment the WAN interface and zone are configured for the internal network’s addressing scheme and attached to the internal network. The X2 port is Layer 2 bridged to the LAN port, but it won’t be attached to anything. The X0 LAN port is configured to a second, specially programmed port on the HP ProCurve switch. This special port is set for mirror mode: it will forward all the internal user and server ports to the “sniff” port on the firewall. This allows the firewall to analyze the entire internal network’s traffic, and if any traffic triggers the security signatures it will immediately trap out to the PCM+/NIM server via the X1 WAN interface, which then can take action on the specific port from which the threat is emanating.

To configure this deployment:
1
Navigate to the Network > Interfaces page.
2
Click on the Edit icon for the X2 interface. The Edit Interface dialog displays.

3
Set the Mode / IP Assignment to Layer 2 Bridged Mode. The options change.

4
Set the Bridged To: interface to X0.
5
Select the checkbox for Only sniff traffic on the bridge-pair.
6
Click OK to save and activate the change. The dialog closes, and the Network > Interfaces page redisplays.
7
Click the Edit icon for the X1 WAN interface. The Edit Interface dialog displays.
8
Assign the X1 WAN interface a unique IP address for the internal LAN segment of your network — this may sound wrong, but this is actually be the interface from which you manage the appliance, and it is also the interface from which the appliance sends its SNMP traps as well as the interface from which it gets security services signature updates.
9
Click OK.
10
For traffic to pass successfully, you must also modify the firewall rules to allow traffic from the
•
LAN to WAN,
•
WAN to the LAN
11
Connect the:
•
Span/mirror switch port to X0 on the firewall, not to X2 (in fact, X2 isn’t plugged in at all)
•
X1 to the internal network
*
IMPORTANT: Use care when programming ports spanned/mirrored to X0.
*
TIP: Informational videos with interface configuration examples are available online. For example, see How to configure the SonicWALL WAN / X1 Interface with PPPoE Connection. Additional videos are available at: https://support.software.dell.com/videos-product-select.
