Templates

NetFlow Version 5 Header Format
Bytes	Contents	Description
0-1	version	NetFlow export format version number
2-3	count	Number of flows exported in this packet (1-30)
4-7	SysUptime	Current time in milliseconds since the export device booted
8-11	unix_secs	Current count of seconds since 0000 UTC 1970
12-15	unix_nsecs	Residual nanoseconds since 0000 UTC 1970
16-19	flow_sequence	Sequence counter of total flows seen
20	engine_type	Type of flow-switching engine
20	engine_id	Slot number of the flow-switching engine
22-23	sampling_interval	First two bits hold the sampling mode; remaining 14 bits hold value of sampling interval

NetFlow Version 5 Flow Record Format
Bytes	Contents	Description
0-3	srcaddr	Source IP address
4-7	dstaddr	Destination IP address
8-11	nexthop	IP address of the next hop router
12-13	input	SNMP index of input interface
14-15	output	SNMP index of output interface
10-19	dPkts	Packets in the flow
20-23	dOctets	Total number of Layer 3 bytes in the packets of the flow
24-27	First	SysUptime at start of flow
28-31	Last	SysUptime at the time the last packet of the flow was received
32-33	srcport	TCP/UDP source port number or equivalent
34-35	dstport	TCP/UDP destination port number or equivalent
36	pad1	Unused (zero) bytes
37	tcp_flags	Cumulative OR of TCP flags
38	prot	IP protocol type (for example, TCP=6; UDP=17)
39	tos	IP type of service (ToS)
40-41	src_as	Autonomous system number of the source, either origin or peer
42-43	dst_as	Autonomous system number of the destination, either origin or peer
44	src_mask	Source address prefix mask bits
45	dst_mask	Destination address prefix mask bits
46-47	pad2	Unused (zero) bytes

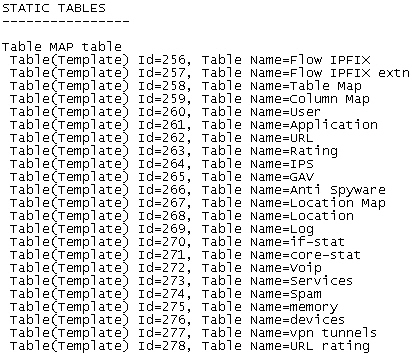

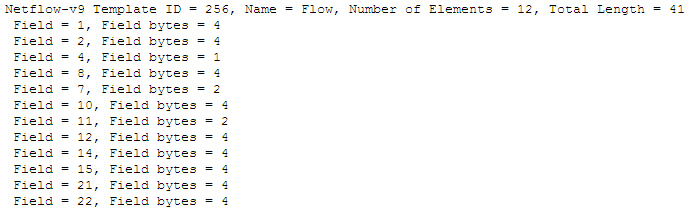

NetFlow Version 9 Template FlowSet Field Descriptions
Field Name	Description
Template ID	The SonicWall appliance generates templates with a unique ID based on FlowSet templates matching the type of NetFlow data being exported.
Name	The name of the NetFlow template.
Number of Elements	The amount of fields listed in the NetFlow template.
Total Length	The total length in bytes of all reported fields in the NetFlow template.
Field Type	The field type is a numeric value that represents the type of field. Note that values of the field type may be vendor specific.
Field bytes	The length of the specific Field Type, in bytes.

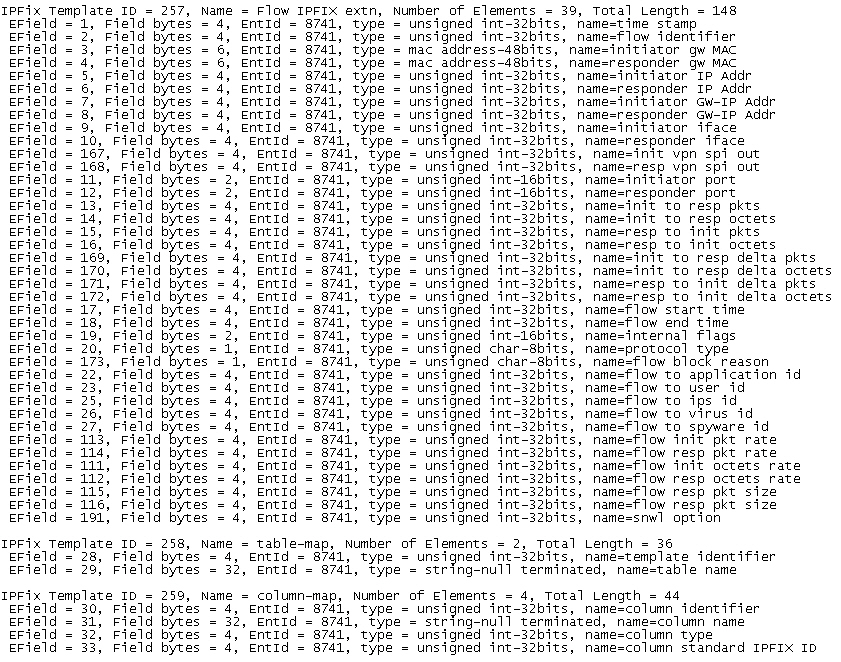

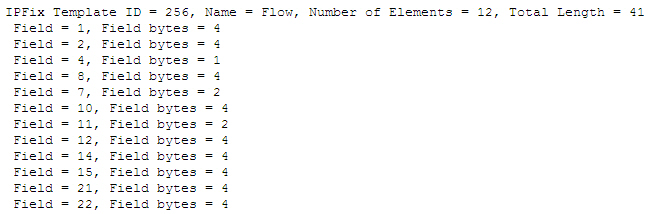

IPFIX Template FlowSet Field Descriptions
Field Name	Description
Template ID	The SonicWall appliance generates templates with a unique ID based on FlowSet templates matching the type of NetFlow data being exported.
Name	The name of the NetFlow template.
Number of Elements	The amount of fields listed in the NetFlow template.
Total Length	The total length in bytes of all reported fields in the NetFlow template.
Field Type	The field type is a numeric value that represents the type of field. Note that values of the field type may be vendor specific.
Field bytes	The length of the specific Field Type, in bytes.
