The Users > Status page displays the Active User Sessions on the firewall. The Active User Sessions panel lists the User Name, IP Address, Session Time, Time Remaining, Inactivity Remaining, Settings, and Logout.
To log a user out, click the Logout icon at the end of the line for that user.
When you select the Show unauthenticated users option, the unauthenticated users are listed in the Unauthenticated Users panel of the Users > Status page.
When you select the Include inactive users option, the inactive users are listed in grey in the Active User Sessions panel of the Users > Status page.

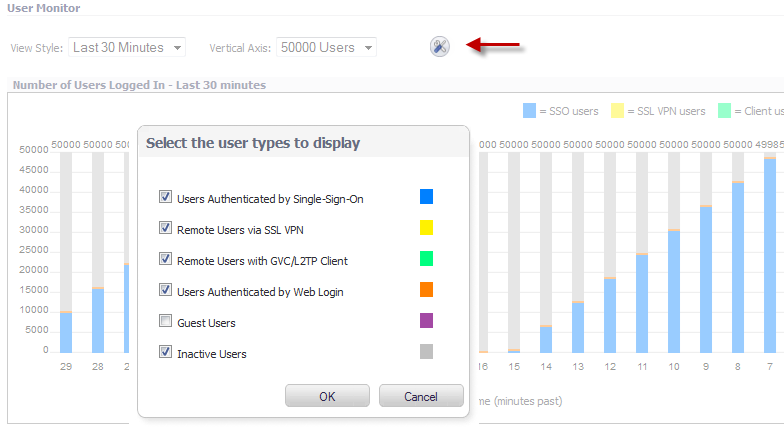

On the Dashboard > User Monitor page, when you click the Tools icon, you can select the user types that you want to display, including Inactive Users.

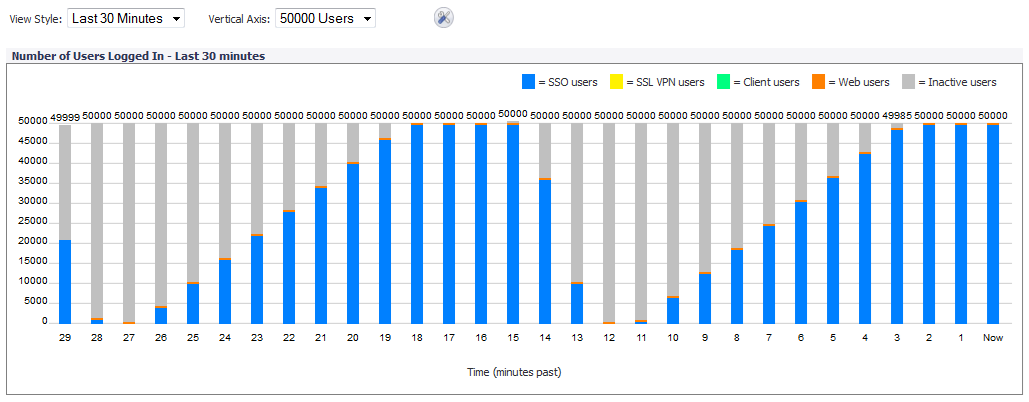

When you select Inactive Users, the inactive users are shown in grey on the User Monitor. This graphic shows a test repeatedly logging 50,000 users in and then letting them go inactive:
On the Users > Status page, each panel has a Filter button and an associated input box to enter the filter string. Help information is displayed when you pause your mouse over the Filter button.
When you pause your mouse over the Stats button, the user counts are displayed.
