CDP_Appendix

SonicWALL CDP Appendix


“Help Overview” section

“Troubleshooting SonicWALL CDP” section

“Configuring SonicOS Security Services for SonicWALL CDP” section

“Technical Frequently Asked Questions” section

“Command Line Interface Reference” section

“Glossary” section

“Related Documents” section

“Contributors” section

Help Overview

Help , a function within the Web Management Interface, redirects the administrator to online SonicWALL CDP help content.

To view the help content, click the Help button in the Web Management Interface toolbar.



Troubleshooting SonicWALL CDP

This section contains troubleshooting information for the SonicWALL CDP. This section contains the following subsections:


“Appliance Troubleshooting” section

“Software Troubleshooting” section

“Backup and Recovery Troubleshooting” section

“Recovery when RAID Fails” section

Appliance Troubleshooting

This section contains troubleshooting that relates to the SonicWALL CDP appliance.

Symptom: Cannot connect to CDP Appliance


Verify that your workstation/server has network level connectivity to the CDP appliance by attempting to ping the CDP appliance at its configured address.

If you are on a separate subnet, you many enter the appliance IP address manually

Select CDP Manual Connection

Type in the CDP appliance IP address.

Ensure that an agent firewall is not blocking the CDP Agent User Interface from connecting to the SonicWALL CDP appliance.

Enable firewall exceptions for Lasso.Client.exe, CDPAutoUpdate.exe and CDPAgent.exe.

Software Troubleshooting

This section contains troubleshooting that relates to the SonicWALL CDP software.

Symptom: Agent will not update


Updates to the agent and appliance are downloaded and installed automatically in a process that is transparent to the user.

If there is no new update available during a manual update, no update will be made.

Verify the current version of your product by navigating to the to the System tab in the SonicWALL CDP Agent User Interface.

Configuring SonicWALL CDP to Use a Public Server Instead of Windows Workgroups

Administrators using a Windows Workgroup may notice that their computer can access the network, but the CDP device cannot. This is because the CDP appliance is not compatible with Windows Workgroups.

Since certain networks demand that you join a Workgroup, the CDP administrator may not be able to upgrade the firmware.

As a solution, the administrator must configure the CDP device with a public server, rather than a private server.

To use a public server you need to configure the CDP Web management interface network settings. To do this, complete the following steps:

Step 1
On your Windows machine, navigate to Network Connections .
Step 2
Right-click Local Area Connections .
Step 3
Select Properties .
Step 4
Select TCP/IP Properties .
Step 5
Configure a Public IP, such as: 10.50.158.52.
Step 6
Click OK in each dialog box.

Symptom: Cannot open Web Management Interface


Verify that CDP Agent User Interface is not running.

The Web Management Interface and the Agent User Interface cannot be open simultaneously on the same PC.

Backup and Recovery Troubleshooting

This section contains troubleshooting that relates to the SonicWALL CDP backup and recovery process. See the following:


“Symptom: Initial backup seems slow”

“Symptom: Files do not appear to be backing up”

“Symptom: Applications are not available when adding a backup policy”

“Symptom: A Permission Denied error is seen when restoring User Mailboxes”

Symptom: Initial backup seems slow


Because SonicWALL CDP performs file compression and intelligent file management, the initial backup of files and folders may take some time depending on folder volume and size.

For example, if you are trying to backup 100,000 files averaging 200 KB, it could take up to 24 hours to complete.

Symptom: Files do not appear to be backing up


Verify that SonicWALL CDP has access to the folders that you are trying to backup.

Verify that SonicWALL CDP Agent User Interface is started in the services tab.

By default, SonicWALL CDP uses the System account to access to the folders that are selected for backup.

The System account will need to be added to the security settings of any directory that you want to backup.

Symptom: Applications are not available when adding a backup policy

The SonicWALL CDP Agent uses a discovery process to find applications available for backup. The Volume Shadow Copy service and VSS Writer service must not be disabled for the discovery process to work.

Volume Shadow Copy Service

To ensure that the SonicWALL CDP Agent can discover available applications, including Outlook, Outlook Express, System State and Active Directory, Exchange Infostore, Exchange User Mailbox, SQL Server, and Sharepoint, verify that the Volume Shadow Copy service is not disabled.

To view and configure the startup method for the Volume Shadow Copy service, perform the following steps:

Step 1
Open the Windows Services window by selecting Start > Administrative Tools > Services .
Step 2
Scroll down to the Volume Shadow Copy service.

Step 3
If it is Disabled , right-click it and select Properties .

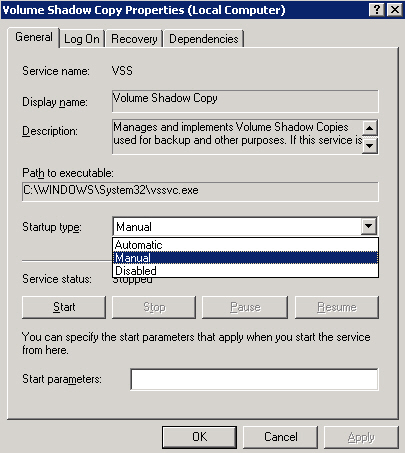

Step 4
In the Volume Shadow Copy Properties window, select Manual from the Startup type drop-down list.

Step 5
Click OK .

VSS Writer Service

By default on Windows Server 2003 SBS, the VSS Writer service is disabled. To ensure that the SonicWALL CDP Agent can discover Microsoft Exchange and SQL applications, the VSS Writer service must be enabled.

To enable the VSS Writer service, perform the following steps:

Step 1
Select Start > Run , type regedit , and then click OK .
Step 2
In the Registry Editor, locate and then double-click the following registry subkey:
HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\MSExchangeIS\ParametersSystem

Step 3
Double-click the Disable Exchange Writer value.
Step 4
In the Value data text box, change the value from 1 to 0 , and then click OK .
Step 5
Quit the Registry Editor.
Step 6
Open the Windows Services window by selecting Start > Administrative Tools > Services .
Step 7
Stop and then restart the Microsoft Exchange Information Store service.

Symptom: A Permission Denied error is seen when restoring User Mailboxes


Verify that you are logged in as “cdpadmin” to the system on which you are trying to restore the user mailboxes. Logging in as “Administrator” and then accessing the Exchange User Mailbox application with “cdpadmin” privileges does not work.

Recovery when RAID Fails

If you are using the SonicWALL CDP 5040 or 6080 appliances, your data will be protected by the additional failover protection of a RAID system in the event that a drive goes down.

SonicWALL CDP 5040 and 6080 appliances have RAID 5, which involves three or more disks, with block-level data striping with distributed parity across the drive set.

This section contains the following subsections:


“If One Disk Fails While Using SonicWALL CDP 5040 / 6080” section

“If Two Disks Fail While Using SonicWALL CDP 5040 / 6080” section

If One Disk Fails While Using SonicWALL CDP 5040 / 6080

If one disk fails while using the SonicWALL CDP 5040 or 6080:


Contact SonicWALL Technical Support . Though your system will remain operational, it is necessary to correct the disk failure.

If Two Disks Fail While Using SonicWALL CDP 5040 / 6080

If two disks fail while using the SonicWALL CDP 5040 or 6080:

Contact SonicWALL Technical Support . Your system will no longer be operational.

Configuring SonicOS Security Services for SonicWALL CDP

When using SonicWALL CDP in conjunction with a SonicWALL firewall appliance, it is necessary to add the CDP appliance to the Security Services exclusion lists.

To configure the Security Services firewall exception list for CDP, perform the following tasks:


“Clearing the Enforce Host Tag Search for CFS Setting”

“Setting up Security Services for SonicWALL CDP”

Clearing the Enforce Host Tag Search for CFS Setting

To clear the Enforce Host Tag Search for CFS setting, perform the following steps:

Step 1
In your browser, navigate to the unlinked Diag page for the SonicWALL network security appliance, available at:
https://<firewall IP address>/diag.html
Step 2
In the left pane, click on the Internal Settings button.
Step 3
Under Security Services Settings in the right pane, clear the Enforce Host Tag Search for CFS checkbox.
Step 4
Click Accept at the top of the page.
Step 5
Click the Close button to return to the SonicOS management interface.

Setting up Security Services for SonicWALL CDP

This section describes the steps needed when adding a SonicWALL CDP appliance to your network when you are running SonicOS Security Services. To prevent the Security Services from blocking access to your SonicWALL CDP appliance, you must configure SonicOS Security Services with exclusions for the IP address of the appliance.

To configure SonicOS Security Services with exclusions for the SonicWALL CDP appliance, perform the following steps:

Step 1
Navigate to the Security Services > Content Filter page.
Step 2
Under CFS Exclusion List , select the Enable CFS Exclusion List checkbox.
Step 3
Click the Add button and add the SonicWALL CDP IP address to the list.
Step 4
Click OK in the Add dialog box, then click Apply on the Content Filter page.
Step 5
Navigate to the Security Services > Client AV Enforcement page.
Step 6
Under Administration , click Configure .
Step 7
In the AV Config View window, under Client Anti-Virus Enforcement , select the Exclude specified address ranges from Client Anti-Virus enforcement radio button.
Step 8
Click the Add button and add the SonicWALL CDP IP address to the list.
Step 9
Click OK in the Add dialog box and Config View window, then click Apply on the Client AV Enforcement page.
Step 10
Navigate to the Security Services > Gateway Anti-Virus page.
Step 11
Under Gateway AV Settings , select the Enable HTTP Byte-Range requests with Gateway AV checkbox.
Step 12
Under Gateway Anti-Virus Global Settings , click the Configure Gateway AV Settings button.
Step 13
In the Gateway AV Config View window, under Gateway AV Exclusion List , select the Enable Gateway AV Exclusion List checkbox.
Step 14
Click the Add button and add the SonicWALL CDP IP address to the list.
Step 15
Click OK in the Add dialog box and Config View window, then click Apply on the Gateway Anti-Virus page.
Step 16
Navigate to the Security Services > Intrusion Prevention page.
Step 17
Under IPS Global Settings , click the Configure IPS Settings button.
Step 18
In the IPS Config View window, under IPS Exclusion List , select the Enable IPS Exclusion List checkbox.
Step 19
Click the Add button and add the SonicWALL CDP IP address to the list.
Step 20
Click OK in the Add dialog box and Config View window, then click Apply on the Intrusion Prevention page.
Step 21
Navigate to the Security Services > Anti-Spyware page.
Step 22
Under Anti-Spyware Global Settings , click the Configure Anti-Spyware Settings button.
Step 23
In the Anti-Spyware Config View window, under Anti-Spyware Exclusion List , select the Enable Anti-Spyware Exclusion List checkbox.
Step 24
Click the Add button and add the SonicWALL CDP IP address to the list.
Step 25
Click OK in the Add dialog box and Config View window, then click Apply on the Anti-Spyware page.

Technical Frequently Asked Questions

This section contains a list of technical FAQs documented by SonicWALL technical support engineers to address common deployment questions. Table 1 lists the technical FAQs in this section.

Table 1
Technical FAQs



FAQ

“Q: How do I backup mapped drives?” section

“Q: How do I back up SQL database in mixed mode?” section

Q: How do I backup mapped drives?

A : SonicWALL CDP cannot backup mapped drives. Agent User Interface software must be installed on the computer where the data for backup resides. If you want to backup data stored on a server that has a mapped drive, you will still need to have the CDP Agent User Interface software installed and configured on the server.

Q: How do I back up SQL database in mixed mode?

A : To back up the SQL data base in mixed mode, the SQL server must be configured for mixed mode authentication. In addition, the SQL account must be part of SQL system administrators, and must have DBO access to the master database and all other application databases that are marked for backup. These settings can be configured using SQL Web Management Interface.

To configure the SQL server for mixed mode authentication, perform the following steps:

Step 1
Launch SQL Server Web Management Interface .
Step 2
Right click on the SQL server instance and choose Properties . This will launch the SQL server properties screen.
Step 3
Click the Security tab.
Step 4
Select SQL Server and Windows

To set the SQL account as part of SQL system administrators, perform the following steps:

Step 1
Expand Security tab under SQL server instance.
Step 2
Click on Logins .
Step 3
Highlight the SQL account on the right side of the screen and double click.
Step 4
Click the Server Roles tab.
Step 5
Select System Administrators .

To verify that the SQL account has DBO access to master database and all other application databases that are marked for backup, perform the following steps:

Step 1
Expand security tab under SQL server instance.
Step 2
Click on Logins .
Step 3
Highlight the SQL account on the right side of the screen and double click.
Step 4
Click the Database tab.
Step 5
Verify that the account has db_owner selected for all databases intended for backup.

Command Line Interface Reference

This section describes each SonicWALL CDP Command Line Interface (CLI) command. There are two types of commands: executables and system variables. Typing in a system variable by itself will return the current value of the variable. To update a variable, type it in followed with a proper value. Some executable commands take an argument, but most do not.

bmr

SNWLCLI> bmr [{useradd <username> <passwd> <quota> | userdel <username> | passwdchange <username> <newpasswd> | quotachange <username> <newquota>}]

With no arguments, displays list of Bare Metal Recovery accounts. With arguments, changes the list.

Arguments :

< username >: User account name to be added or deleted, or for which to change the password or quota

< passwd >: Password for an account being added
< newpasswd >: New password for an account being changed
< quota >: Quota for an account being added
< newquota >: New quota for an account being changed

Type : System Variable

Defaults : none

Related Commands : none

date

SNWLCLI> date

This variable controls the date on the appliance.

Arguments : none

Type : System Variable

Defaults : none

Related Commands : time

dig

SNWLCLI> dig [@global-server ] [domain ] [q-type ] [q-class ] {q-opt } {global-d-opt } host [@local-server ] {local-d-opt } [ host [@local-server ] {local-d-opt }]

This is the standard dig command from the bind-tools package. Use this command to troubleshoot DNS related issues, such as:


Connectivity to DNS server

Outbound emails being queued

DNS does not resolve into an IP address to connect

Arguments :

q-class: one of in,hs,ch

q-type: one of a,any,mx,ns,soa,hinfo,axfr,txt (Use ixfr=version for type ixfr)
q-opt is one of:
-x dot-notation: shortcut for in-addr lookups
-i: IP6.INT reverse IPv6 lookups
-f filename: batch mode
-b address[#port]: bind to source address/port
-p port: specify port number
-t type: specify query type
-c class: specify query class
-k keyfile: specify tsig key file
-y name key: specify named base64 tsig key
-4: use IPv4 query transport only
-6: use IPv6 query transport only
d-opt is of the form +keyword[=value], where keyword is:
+[no]vc: TCP mode
+[no]tcp: TCP mode, alternate syntax
+time=###: Set query timeout [5]
+tries=###: Set number of UDP attempts [3]
+retry=###: Set number of UDP retries [2]
+domain=###: Set default domainname
+bufsize=###: Set EDNS0 Max UDP packet size
+ndots=###: Set NDOTS value
+[no]search: Set whether to use searchlist
+[no]defname: Ditto
+[no]recurse: Recursive mode
+[no]ignore: Don't revert to TCP for TC responses
+[no]fail: Don't try next server on SERVFAIL
+[no]besteffort: Try to parse even illegal messages
+[no]aaonly: Set AA flag in query (+[no]aaflag)
+[no]adflag: Set AD flag in query
+[no]cdflag: Set CD flag in query
+[no]cl: Control display of class in records
+[no]cmd: Control display of command line
+[no]comments: Control display of comment lines
+[no]question: Control display of question
+[no]answer: Control display of answer
+[no]authority: Control display of authority
+[no]additional: Control display of additional
+[no]stats: Control display of statistics
+[no]short: Disable everything except shortform of answer
+[no]ttlid: Control display of ttls in records
+[no]all: Set or clear all display flags
+[no]qr: Print question before sending
+[no]nssearch: Search all authoritative nameservers
+[no]identify: ID responders in short answers
+[no]trace: Trace delegation down from root
+[no]dnssec: Request DNSSEC records
+[no]multiline: Print records in an expanded format
global d-opts and servers (before host name) affect all queries.
local d-opts and servers (after host name) affect only that lookup.

Type : Executable

Defaults :

q-class: in

q-type: a

dns

SNWLCLI> dns [--nameserver <ip >]... [--search <domain >]...

This variable controls the DNS configuration settings on an appliance. Called with no arguments it will return the current configuration.

Arguments :

< ip >: IP address to be assigned to the server

< domain >: Domain name to be searched for

Type : System Variable

Defaults : q-class

drives

SNWLCLI> drives

This function outputs a list of drives registered with the system. Three types of drives are:


System: Default data storage with operating system installed on it

Internal: Additional internal device

Temporary: Temporary external device, such as a USB drive

Arguments : none

Type : System Variable

Defaults : none

Related Commands : time

exit

SNWLCLI> exit

This function will exit out of the CLI.

Arguments : none

Type : Executable

Defaults : none

fetchurl

SNWLCLI> fetchurl [-q ] <URL >

This function sends an HTTP request and dumps it to standard output.

Arguments :

< URL >: The URL being requested.

-q: quiet
-S: dump header in addition to response body

Type : Executable

Defaults : none

get

SNWLCLI> get <arg> [arg ]

This function will retrieve configuration parameters.

Arguments : [arg ]: Valid arguments that can be retrieved: ntp, ntpservers, syslogservers, tz

Type : Executable

Defaults : none

gms

SNWLCLI> gms <interval > [<server>…]

This variable stores the interval time between SonicWALL GMS heartbeat messages. Heartbeat messages allow SonicWALL GMS to monitor the SonicWALL CDP appliance.

Arguments :

< interval >: time in seconds between SonicWALL GMS heartbeat messages, set to 0 to disable

<server>:

Type : System Variable

Defaults : none

help

SNWLCLI> help <command >

This function will print help messages describing available commands from the CLI. Calling it with no arguments will print out a list of available commands. It can take a command name as an argument and will print out more detailed explanation of the given command.

Arguments :

< command >: name of a valid CLI command

Type : Executable

Defaults : all available commands

hostname

SNWLCLI> hostname < fqdn >

This function will display or set current host name. Calling it with no argument will display the current hostname.

Arguments :

< fqdn >: fully qualified domain name

Type : Executable

Defaults : snwl.example.com

interface

SNWLCLI> interface <ifname <ip / bits | ip netmask >>

This variable controls the configuration of interfaces. With no arguments, it will return the configuration of all available interfaces. Passing it an interface name as an argument will return all data related to the given interface. Passing it an interface name and an IP address will overwrite the current configuration of the interface.

Arguments :

< ifname >: name of interface to be configured

< ip >: new IP address to be assigned to interface
< bits >: bit rate to be assigned to interface
< netmask >: netmask to be assigned to interface

Type : System Variable

Defaults : current configuration

Example :

SNWLCLI> interface eth0 192.168.168.169/24

SNWLCLI> interface eth0 192.168.168.169 255.255.255.0



Example Use Case: Authentication Reset

Problem : You have lost the password and IP address for your SonicWALL CDP appliance.

Solution : First, reset the password to the default, and then determine the IP address of the SonicWALL CDP appliance. Connect a USB keyboard and monitor to your SonicWALL CDP appliance and perform the following steps:

a.
Reboot the SonicWALL CDP appliance, and interrupt the boot process by tapping the ESC key on the keyboard as the boot process progresses, until you are in the GRUB bootloader screen. You will see a variety of options. Select the Authentication Reset option.

Your SonicWALL CDP will appear to partially reboot, and will perform an additional full reboot once more. Your username/password is reset to admin and the generic password, password .

b. Use the keyboard and monitor to log into the appliance using the admin user name and the current CDP password.

The SNWLCLI> prompt is displayed.

c. Type the following command to determine the IP address of the appliance:

SNWLCLI> interface eth0

The output will look similar to the following example:
eth0: 192.168.181.10 255.255.0.0
Media: Auto-detected
where 192.168.181.10 is the current IP address and 255.255.0.0 is the current subnet mask for the SonicWALL CDP default network adaptor.
d. If that IP address is not routable in your network (for example, it was set incorrectly or with a typo during setup), you can change the IP address on a laptop or another computer to an IP address on the same (incorrect) subnet, allowing you to gain access to the SonicWALL CDP web management interface to change the CDP IP address. Be sure to reset your laptop IP address to its previous setting after updating the IP address on the SonicWALL CDP.

iostat

SNWLCLI> iostat [options...] [<interval >[<count >]]

This is the standard input/output statistics utility.

Arguments :

[options]: see manual for details

<interval>: see manual for details
<count>: see manual for details

Type : Executable

Defaults : none

ntp

SNWLCLI> ntp <on |off > [<default servers | <server > [<server >]...>]

This variable controls the NTP (Network Time Protocol) on an appliance. With no arguments, it will print out the current NTP configuration. In order to change NTP configuration, pass “on” or “off” as a first argument followed by a list of NTP servers to use. Use this command to synchronize the time with a NTP server.

Arguments :

< on >: Enables NTP using currently configured NTP servers

< off >: Turn off NTP
< default servers >: Enables NTP and resets list of servers to the built-in defaults
< server >: specifies a server to be set in NTP list

Type : System Variable

Defaults : Current configuration

ping

SNWLCLI> ping [-c COUNT ] [-s SIZE ] [-q ] host

This function is the standard ping function. Use this control to test connectivity. It also tests the appliance’s DNS lookup values.

Arguments :

host : target of ping

-c COUNT: send only COUNT pings
-s SIZE: Send SIZE date bytes in packets
-q: quite mode, only displays output at start and when finished

Type : Executable

Defaults : Sent SIZE data bytes in packets = 56

quit

SNWLCLI> quit

Exits out of the CLI.

Arguments : none

Type : Executable

Defaults : none

raidadd

SNWLCLI> raidadd

This function adds a new drive to the RAID array.

Arguments : none

Type : Executable

Defaults : none

Related Commands : raidinfo , raidrebuild , raidremove , raidstatus , raidverify

raidinfo

SNWLCLI> raidinfo

This function outputs information about the RAID devices in the box.

Arguments : none

Type : Executable

Defaults : none

Related Commands: raidadd , raidrebuild , raidremove , raidstatus ,raidverify

raidrebuild

SNWLCLI> raidrebuild <controller> <array> [--drive <drive>]

This function will rebuild a drive within the raid array. With no arguments, it will display the rebuild status and scheduled jobs. With <controller > and <array > arguments, it rebuilds the array using an optional specified drive or the first available spare drive. Scheduling rebuilding operations is recommended as rebuilding an array can take a long time. SonicWALL recommends allowing a full night for the rebuilding process.

Arguments :

< controller >, <array >: rebuilds using an optional specified drive or a first available spare

< drive >: drive used to rebuild the array

Type : Executable

Defaults : none

Related Commands : raidadd , raidinfo, raidremove , raidstatus ,raidverify



Example Use Case :

Problem : A SonicWALL CDP appliance has a degraded RAID array and displays the following information:

SNWLCLI> raidinfo

Controller: 2
Manufacturer: 3ware
Model: 9650SE-4LPML
Serial: L222008A8110095
Firmware: FE9X 4.06.00.004
Driver: 2.26.08.004-2.6.23

Array Status Size Type
----- ------ ---- ----
0 DEGRADED 2249961567683  RAID-5

Port Status        Size  Model Serial
---- ------          ---- -----   ------
0 UNKNOWN   N/A          N/A  N/A
1 OK           750156374016 WDC WD7502ABYS-01A6B0 WD-WMATW0008111
2 OK           750156374016 WDC WD7502ABYS-01A6B0 WD-WMATW0015222
3 OK           750156374016 WDC WD7502ABYS-01A6B0 WD-WMATW0008333


SNWLCLI> raidstatus
Controller Array 0
---------- --------
2          DEGRADED



Solution : Rebuild the RAID drive in the array with valid arguments, by performing the following steps:

a.
In the CLI, execute raidremove 2 0 , where the controller number is 2 and the drive port is 0.

This command should not generate any verbose output.

b. Execute raidinfo to check the status.

The status of port 0 should change to NOT-PRESENT.

c. Remove the bad disk and insert a new disk.
d. Execute raidadd .
e. Run raidinfo to check the status.

In the status output under Array, you will see two entries: 0 and 1:

Array Status Size Type
----- ------ ---- ----
0 DEGRADED 2249961567683   RAID-5
1 OK 750147176759  SPARE
f.
Execute raidrebuild 2 0 drive 0 , to rebuild array 0.

You will see the following or similar output:

Controller Array 0
---------- --------
2 0%
g.
Run raidinfo to check status after starting the rebuild.

The status of the array will show as REBUILDING.

raidremove

SNWLCLI> raidremove <controller>, <port>

This function removes a defective drive from the RAID array. It takes the name of the drive to be removed as an argument.

Note The raidremove command must be executed before the bad disk is removed. Otherwise, there will be an error output.

Arguments :

<controller>:

<port>: removes the specified port

Type : Executable

Defaults : none

Related Commands: raidadd , raidinfo, raidrebuild , raidstatus ,raidverify

raidstatus

SNWLCLI> raidstatus

This function prints out information about the status of the RAID arrays.

Arguments : none

Type : Executable

Defaults : none

Related Commands : raidadd , raidinfo, raidrebuild , raidremove , raidverify

raidverify

SNWLCLI> raidverify [{--start |--stop } c <controller>.a <array>=<m:h:D|now >|--remove <job>]

This function will verify the RAID array. With no arguments, it will display the verification status and scheduled jobs. Scheduling verifying operations is recommended as they can take a long time. SonicWALL recommends allowing a full night for RAID verification.

Arguments :

< m:h:D > : schedule is expressed as either "now" or m:h:D where m is the minute, h is the hour, and D is the day of week 0-6 where 0 is Sunday, and * in any field means "every time"

<job> : rebuild job to be removed
-- start : schedules verification start
-- stop : schedules verification stop
-- remove : removes verification job

Type : Executable

Defaults : displays verification status and scheduled jobs

Related Commands: raidadd , raidinfo, raidrebuild , raidrebuild , raidstatus

reboot

SNWLCLI> reboot

This function will reboot the appliance.

Arguments : none

Type : Executable

Defaults : none

reset

SNWLCLI> reset

This function will reset the appliance to factory defaults.

Arguments : none

Type : Executable

Defaults : none

restart

SNWLCLI> restart <appservices | postgresql | stunnel | webui>

This function restarts running services. It takes a service name as an argument.

Arguments :

<service>: service to restart

Type : Executable

Defaults : none

Related Commands: stop , restart

route

SNWLCLI> route < --add <target > --destination <destination > | --remove <index >>

This function acts like a system variable. With no argument, it will display routes. It can add routes if provided with an interface name or a gateway IP, or remove an existing route. Use this command to troubleshoot routing problems.

Arguments :

< target >: an IP address, net as IP/CIDR, or ‘default’ to be added as a target to the new route

< destination >: an interface name or a gateway IP
< index >: index number of the route to be removed

Type : Executable

Defaults : Current routes



Example Use Case :

Problem : You want to replace the gateway IP for your network, and add a route for it.

Solution : Execute the following command, where the new gateway IP address is 10.10.100.1:

SNWLCLI> route --add 0.0.0.0/0 --destination 10.10.100.1

snmp

SNWLCLI> snmp <on | off>

This variable holds the SNMP status. The current value will be displayed if the command is used without an argument.

Arguments :

<on>: enables SNMP

<off>: disables SNMP

Type : System Variable

Defaults : Current configuration

sshd

SNWLCLI> sshd <on | off>

This variable holds the sshd status. The current value will be displayed if the command is used without the argument.

Arguments :

<on>: enables sshd

<off>: disables sshd

Type : System Variable

Defaults : on

start

SNWLCLI> start < appservices | postgresq | stunnel | webui >

This function starts services. It takes a service name as an argument. The list of services is application-specific.

Arguments :

< service >: service to start

Type : Executable

Defaults : none

Related Commands : stop , restart

stop

SNWLCLI> stop < appservices | postgresq | stunnel | webui >

This function stops running services. It takes a service name as an argument. The list of services is application-specific.

Arguments :

< service >: service to stop

Type : Executable

Defaults : none

Related Commands : start , restart

telnet

SNWLCLI> telnet <host > [<port >]

This functions just like the interactive network communication program with the same name. It takes a host and a port as arguments. Use this tool to establish connectivity issues with a SMTP server. It is also useful to check if outbound SMTP rules on a firewall are well configured

Arguments :

< host >: hostname of telnet target

< port >: port number

Type : Executable

Defaults : none

time

SNWLCLI> time [<YYYY/MM/DD hh:mm >][TZ <timezone >]

This function controls the date, time, and the time zone.

Arguments :

< YYYY>: year

<MM>: month
<DD>: day
<hh>: hours
<mm >: minutes
< timezone >: timezone

Type : System Variable

Defaults : Current configuration

tsr

SNWLCLI> tsr

This function outputs an internal system state report. It does not take any arguments.

Arguments : none

Type : Executable

Defaults : none

tzlist

SNWLCLI> tzlist

This function outputs a list of all available time zones.

Arguments : none

Type : Executable

Defaults : none

version

SNWLCLI> version

This function displays the firmware and application version.

Arguments : none

Type : Executable

Defaults : none

Glossary

Active Directory : A centralized directory service system produced by Microsoft that automates network management of user data, security and resources, and enables interoperation with other directories. Active Directory is designed especially for distributed networking environments.

Advanced Encryption Standard (AES) : A recent U.S. government encryption standard designed as the replacement for the aging Data Encryption Standard (DES).

Agent : A server, laptop or PC to be backed up using SonicWALL CDP.

Agent Service : A SonicWALL CDP software installed automatically on agents with Agent User Interface software. Agent Service communicates with the SonicWALL CDP appliance.

Agent User Interface : A SonicWALL CDP software installed on agents. Agent User Interface is a user interface for users of SonicWALL CDP agents that allows data backup and recovery configuration, as administered by the SonicWALL CDP Web Management Interface.

Backup Task : A defined File Set and Schedule are combined into a Backup Task for execution. Without a Backup Task, no backups will occur.

CDP Backup Method : One method of configuring file and folder backups on agents. The CDP method corresponds to the method used in the SonicWALL CDP 5.1 and earlier releases. Files are backed up individually rather than as a File Set, with new revisions created continuously as changes occur, up to a set limit of revisions.

Data De-duplication : The process used by SonicWALL CDP to back up only the blocks of data that have changed since the last scheduled backup. Metadata is used to map the changes between different revisions so that any revision can be restored correctly.

Domain Name System/Service (DNS) : An Internet service that translates domain names into IP addresses. Because domain names are alphabetic, they're easier to remember. The internet however, is really based on IP addresses. Every time you use a domain, therefore, a DNS service must translate the name into the corresponding IP addresses.

Downstream CDP appliance : A local CDP appliance on your LAN.

Dynamic Host Configuration Protocol (DHCP) : A Protocol for assigning dynamic IP addresses to devices on a network. With dynamic addressing, a device can have a different IP address every time it connects to the network. In some systems, the device’s IP address can even change while it is still connected. DHCP also supports a mix of static and dynamic IP addresses.

Dynamic addressing simplifies network administration because the software keeps track of IP addresses rather than requiring an administrator to manage the task. This means that a new computer can be added to a network without the hassle of manually assigning it a unique IP address. Many Internet Service Providers (ISPs) use dynamic IP addressing for dial-up users.

Web Management Interface : A SonicWALL CDP software installed on the SonicWALL CDP administrator’s computer.

File Allocation Table (FAT) : A table that the operating system uses to locate files on a disk. Due to fragmentation a file may be divided into many sections that are scattered around the disk. The FAT keeps track of all the pieces.

FileSet Backup Method : One method of configuring file and folder backups on agents. The FileSet method is new in the SonicWALL CDP 6.0 release. Files are backed up as a set of files for best synchronization, with new revisions created according to a configured schedule. Data de-duplication is used to back up only the blocks of data that have changed between scheduled intervals. The defined File Set and Schedule are combined into a Backup Task for execution.

High Availability : The capability of a mission-critical device, such as a SonicWALL security gateway, to automatically failover to a backup device in the event of a hardware failure on the primary unit.

Hyper Text Transfer Protocol (HTTP) : The underlying protocol used by the World Wide Web. HTTP defines how messages are formatted and transmitted, and what actions Web servers and browsers should take in response to various commands.

IP address (Internet Protocol) : An Identifier for a computer device on a TCP/IP network. Networks using the TCP/IP protocol route message based on the IP address of the destination. The format of an IP address is a 32-bit numeric address written as four numbers separated by periods. Each number can be zero to 255. For example, 1.160.10.240 could be an IP address.

Local Area Network (LAN) : A computer network that spans a relatively small area. Most LANs are confined to a single building or group of buildings. However, one LAN can be connected to other LANs over any distance using telephone lines and radio waves. A systems of LANs connected in this way is called a wide-area network (WAN).

Master Boot Record (MBR) : A small program that is executed when a computer boots up. Typically, the MBR resides on the first sector of the hard disk. The program begins the boot process by looking up the partition table to determine which partition to use for booting. It then transfers program control to the boot sector of that partition, which continues the boot process.

Policy : A set of rules administered from the SonicWALL CDP Web Management Interface. Policies are assigned directly to agents and define backup rights, quota, and other SonicWALL CDP capabilities.

Quota : The maximum amount of data a SonicWALL CDP agent can back up to the SonicWALL CDP appliance. The quota can be managed according to the number of files, the size of data on the appliance disk, or the size of the files being backed up. The two sizes can differ due to the data de-duplication feature.

Redundant Array of Independent Disks (RAID) : A failover method used to protect against data loss in the event of disk failure.

Static IP address : An IP address that is unique and unchanging. Unlike dynamic IP addresses, a static IP address remains the same when you make a new Internet connection.

Upstream CDP appliance : An offsite CDP appliance on your WAN that is used for secure backup and recovery.

User Datagram Protocol (UDP) : A connectionless protocol that sends and receive datagrams over an internet protocol (IP) network.

Universal Serial Bus (USB) : An external bus standard that supports data transfer rates of 12Mbps. A single USB port can be used to connect up to 127 peripheral devices, such as mice, modems, and keyboard. USB also supports Plug-and-Play installation and hot plugging.

Related Documents

This section contains related documentation specific to SonicWALL CDP solutions.

User Guides

All online documentation for SonicWALL user’s guides is available on the SonicWALL Support Web site at: http://www.sonicwall.com/us/support.html .


SonicWALL CDP 6.0 Agent User Interface User’s Guide

SonicWALL CDP 110/210 Getting Started Guide

SonicWALL CDP 5040 Getting Started Guide

SonicWALL CDP 6080 Getting Started Guide

SonicWALL CDP Microsoft Exchange User Mailbox Feature Module

SonicWALL CDP Microsoft Exchange InfoStore Feature Module

SonicWALL CDP Site-to-Site Feature Module

SonicWALL CDP Local Archiving Feature Module

Contributors

Susan Weigand has over seven years of network security documentation experience. Prior to becoming a SonicWALL Senior Technical Writer, she worked for over ten years as a UNIX developer, and spent three years as a QA engineer at Cisco Systems and Symantec. At Symantec, Susan authored the Symantec Network Security 7100 Series Implementation Guide and contributed to other endpoint security and network security documents. She has taken a turn as the lead author on every SonicWALL product line over the past four years, preparing both administrator and user guides. Susan has also authored over 20 technical guides on network security topics and secure remote access solutions, including application firewall and control, high availability solutions, packet capture, switching, layer 2 bypass, single sign-on, custom reporting, application backup and restore, and Citrix access solutions. Susan holds two B.A. degrees in Computer Science and History, both with honors, and a Certificate in Internet Programming from the University of California at Santa Cruz.

Jean-Marc Catalaa , SonicWALL Curriculum Developer, holds a B.S. in Electrical Engineering from San Jose State University. Jean-Marc has written numerous technical documents and developed curriculum based on topics including multi-processor architecture, networking and wireless communications. He has taught over 40 classes about wireless communication in English, Spanish, Portuguese and Italian, adjusting training style for worldwide audiences and emphasizing hands-on learning.

Patrick Lydon has over five years of experience as a SonicWALL Technical Writer. He has authored over 20 technical guides on UTM, secure remote access solutions, Virtual Access Points, wireless site surveying, and RF monitoring. Patrick has also received an International Photography Award for Fine Art Portraiture . Patrick holds a B.A. degree in Design Studies with concentration in Graphic Design from San Jose State University.

Angela Mendoza is a Technical Writer with SonicWALL. She has a B.A. in English Literature, with an emphasis in Creative Writing, and a minor in Music from San Jose State University. Angela has earned distinction with several 2008 Phelan Awards in the genres of Best Short Story and Best Metrical Poetry from San Jose State University.

Dave Parry is SonicWALL’s Director of Platform Usability. Dave is one of SonicWALL's lead feature developers and is also the keeper of nearly a decade of SonicWALL institutional knowledge. Dave has designed and deployed networks for more than 100 companies worldwide, including a number of SonicWALL's most advanced and complicated customer networks. He has authored over one hundred SonicOS technotes for the SonicWALL Knowledge Base. Dave has also been instrumental in network troubleshooting and design, interoperability testing, lab maintenance, and performance testing. Dave designed and maintains the SonicWALL Live Demo site: http://livedemo.sonicwall.com/

Khai Tran has more than ten years of experience in networking documentation and works in San Jose, California, as technical documentation manager for SonicWALL. He leads SonicWALL’s technical documentation teams, which have received numerous 5-star reviews in 2008 from the industry’s leading publications and reviewers. Khai was a lead author of Cisco IOS NetFlow Services Integrated Solutions Guide, and a contributing author to Cisco   IOS Switching Services Configuration Guide. He has also authored enterprise and service provider network solution guides for Boeing Aerospace and Electronic Arts. He holds a B.A. degree in English Modern Literature from U.C. Santa Cruz, a certificate in Technical Communications, and a Bilingual Teaching Credential from San Jose State University.
