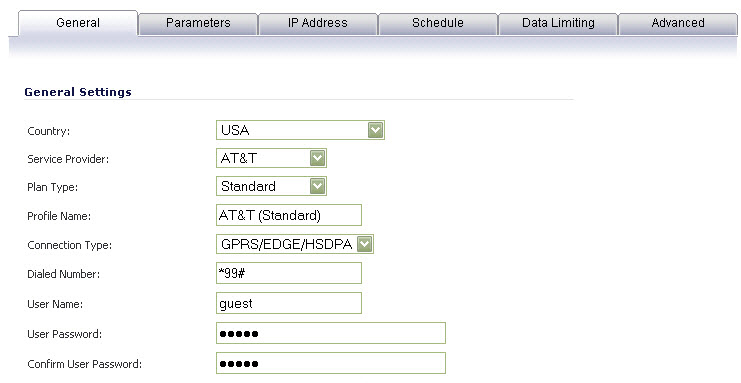

The General tab allows you to configure general connection settings for the 3G/4G service provider. After selecting your country, service provider, and plan type, the rest of the fields are automatically field for most service providers.
|
1
|
On the 3G/4G > Connection Profiles page, click on the Add button. The 3G/4G Profile Configuration window displays.
|
|
2
|
Select the Country where the Dell SonicWALL appliance is deployed.
|
|
3
|
Select the Service Provider that you have created an account with. Note that only service providers supported in the country you selected are displayed.
|
|
4
|
In the Plan Type window, select the 3G/4G plan you have subscribed to with the service provider. If your specific plan type is listed in the drop-down menu (many basic plans are labeled simply as standard), the rest of the fields in the General tab are automatically provisioned. Verify that these fields are correct, and then skip ahead to Parameters Tab .
|
|
5
|
|
6
|
Enter a name for the 3G/4G profile in the Profile Name field.
|
|
7
|
Verify that the appropriate Connection Type is selected. Note that this field is automatically provisioned for most service providers.
|
|
8
|
Verify that the Dialed Number is correct.
|
|
9
|
Enter your username and password in the User Name, User Password, and Confirm User Password fields, respectively, if required by your provider.
|
