Anti-Spam > LDAP Configuration

The LDAP Configuration page allows you to configure various settings specific to the LDAP server.

Topics:

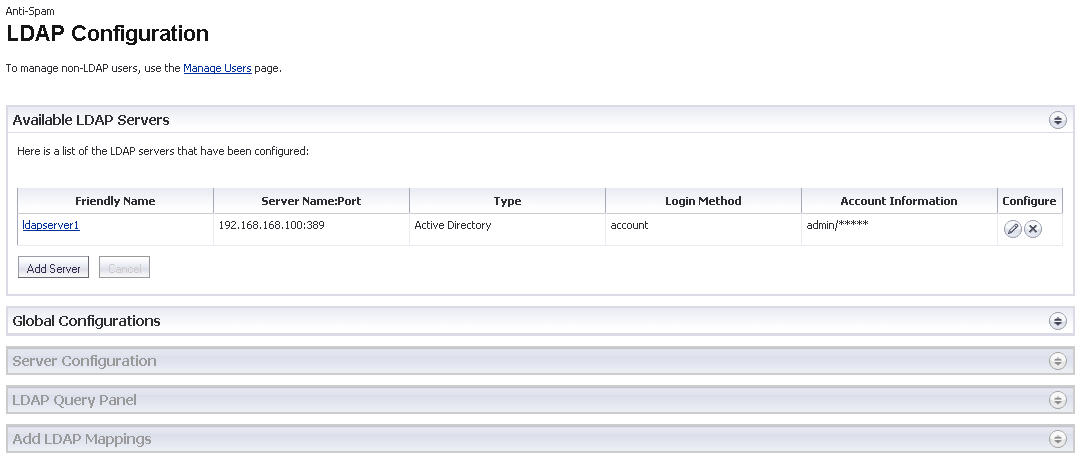

Available LDAP Servers

This section will display any LDAP Servers that have been configured on the firewall.

Adding an LDAP Server

1

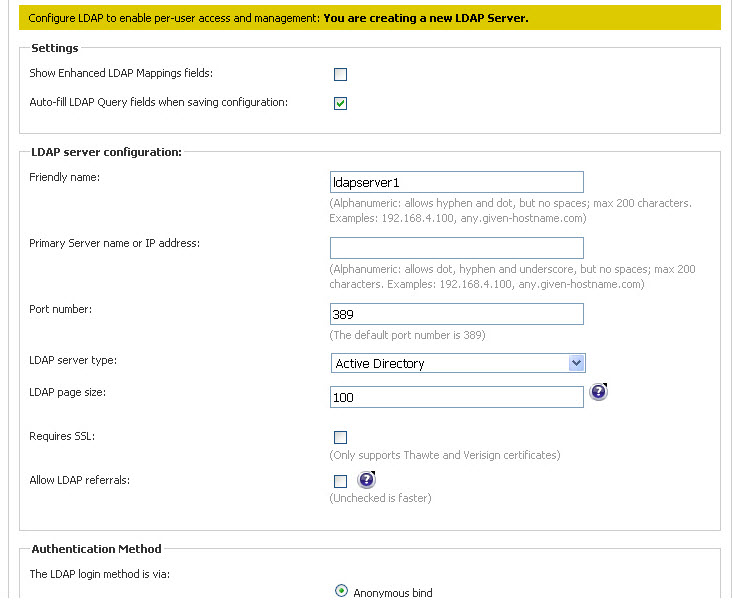

In the Available LDAP Servers section, click the Add Server button. The Server Configuration section expands.

2
Friendly Name—A friendly name for the LDAP Server.
Primary Server name or IP address—The server name or the IP address of the LDAP Server.
Port Number—The port number of the LDAP Server. The default port number is 389.
LDAP Server Type—Choose from the drop-down list of servers: Active Directory, Lotus Domino, Exchange 5.5, Sun ONE iPlanet, or Other.
LDAP Page Size—The maximum page size on the LDAP Server to be queried.
Requires SSL—Selecting this enables the LDAP Server to require SSL.
Allow LDAP Referrals—Selecting this allows LDAP referrals.
3
From the Authentication Method section, configure the LDAP login method for users:
4
Specify the Login name and Password.
5
Optionally, you can enable the Auto-fill LDAP Query fields when saving configuration option by selecting the checkbox.
6
Click Save Changes to finish adding an LDAP Server.
7
You can test the settings you just configured by clicking the Test LDAP Login button on the bottom right corner of the Authentication Method section.
