Statistics Tab

The Statistic tab shows reports of the flows that are sent to the server, not collected, dropped, stored in and removed from the memory, reported and non-reported to the server. This section also includes the number of NetFlow and IP Flow Information Export (IPFIX) templates sent and general static flows reported.

Topics:

•	External Flow Reporting Statistics

•	Internal AppFlow Reporting Statistics

•	Total IPFIX Statistics

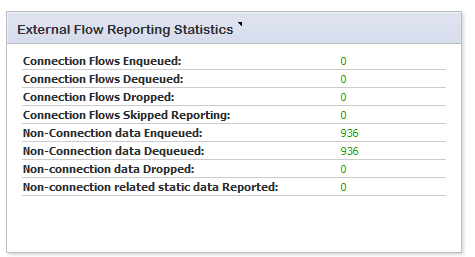

External Flow Reporting Statistics



Table 90. External flow reporting statistics

Connection Flows Enqueued:	Total number of connection-related flows collected so far.
Connection Flows Dequeued:	Total number of connection-related flows that have been reported either to an internal AppFlow collector or external collectors.
Connection Flows Dropped:	Total number of collected connection-related flows that failed to get reported.
Connection Flows Skipped Reporting:	Total number of connection-related flows that skipped reporting, which can happen when running in periodic mode where collected flows are more than the configured value for reporting.
Non-Connection data Enqueued:	Total number of all non-connection-related flows that have been collected so far.
Non-Connection data Dequeued:	Total number of all non-connection-related flows that have been reported either to external collectors or an internal AppFlow collector.
Non-connection data Dropped:	Total number of all non-connection-related data dropped due to too many requests.
Non-connection related static data Reported:	Total number of static non-connection-related static data that have been reported. This number includes lists of applications/viruses/spyware/intrusions/table-map/column-map/location map.

Internal AppFlow Reporting Statistics



Table 91. Internal AppFlow reporting statistics

Data Flows Enqueued:	Total number of connection-related flows that have been queued to the AppFlow collector.
Data Flows Dequeued:	Total number of all connection-related flows that have been successfully inserted into the database.
Data Flows Dropped:	Total number of connection-related flows that failed to get inserted into the database due to a high connection rate.
Data Flows Skipped Reporting:	Total number of connection-related flows that skipped reporting.
General Flows Enqueued:	Total number of all non-connection-related flows in the database queue.
General Flows Dequeued:	Total number of all non-connection-related flows successfully inserted into the database.
General Flows Dropped:	Total number of all non-connection-related flows that failed to be inserted into the database due to a high rate (too many requests).
General Static Flows Dequeued:	Total number of all non-connection-related static flows successfully inserted into the database.
AppFlow Collector Errors:	Total number of AppFlow database errors.
Total Flows in DB:	Total number of connection-related flows in the database.

Total IPFIX Statistics

The IPFIX statistics are displayed in two tables at the bottom of the Statistics tab:

•	NetFlow/IPFIX Packets Sent Statistics

•	Non-Connection Related Flows Sent to External Collector Statistics

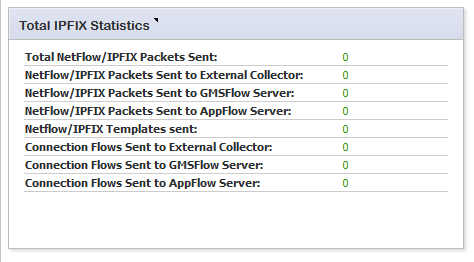

NetFlow/IPFIX Packets Sent Statistics



Table 92. Total IPFIX packets-sent statistics

Total NetFlow/IPFIX Packets Sent:	Total number of IPFIX/NetFlow packets sent to all/external collector/AppFlow server/GMSFlow server so far.
NetFlow/IPFIX Packets Sent to External Collection:	Total number of IPFIX/NetFlow packets sent to the external collector so far.
NetFlow/IPFIX Packets Sent to GMSFlow Server:	Total number of IPFIX/NetFlow packets sent to the GMSFlow server so far.
NetFlow/IPFIX Packets Sent to AppFlow Server:	Total number of IPFIX/NetFlow packets sent to the AppFlow server so far.
NetFlow/IPFIX Templates Sent	Total number of IPFIX/NetFlow templates sent to the all/external collector/AppFlow server/GMSFlow server.
Collection Flows Sent to External Collection	Total number of connection/static/general flows that have been reported to the external collector.
Collection Flows Sent to GMSFlow Server	Total number of connection/static/general flows that have been reported to the GMSFlow server.
Collection Flows Sent to AppFlow Server	Total number of connection/static/general flows that have been reported to the AppFlow collector.

Non-Connection Related Flows Sent to External Collector Statistics

Table 93. Total IPFIX statistics: Non-connection related flow sent to external collector statistics

Non-Connection related Dynamic Flows Sent to External Collector:	Total number of IPFIX/netflow packets sent to the external collector so far.
Non-Connection related Dynamic Flows Sent to GMSFlow Server:	Total number of IPFIX/netflow packets sent to the GMSFlow server so far.
Non-Connection related Dynamic Flows Sent to AppFlow Server:	Total number of IPFIX/netflow packets sent to the AppFlow server so far.
Non-Connection related Static Flows Sent to External Collector:	Total number of connection/static/general flows that have been reported to the external collector.
Non-Connection related Static Flows Sent to GMSFlow Server:	Total number of connection/static/general flows that have been reported to the GMSFlow server.
Non-Connection related Static Flows Sent to AppFlow Server:	Total number of connection/static/general flows that have been reported to the AppFlow server.
