Bandwidth Management Methods

The Bandwidth Management feature can be implemented in two separate ways:

•
Per Policy Method
•
The bandwidth limit specified in a policy is applied individually to each policy
•
Example: two policies each have an independent limit of 500kb/s, the total possible bandwidth between those two rules is 1000kb/s

•
Per Action Aggregate Method
•
The bandwidth limit action is applied (shared) across all policies to which it is applied
•

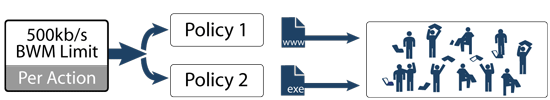

Example: two policies share a BWM limit of 500kb/s, limiting the total bandwidth between the two policies to 500kb/s:

Bandwidth Aggregation Method is selected from the Firewall > Action Objects page, as described in Configuring BWM in an Action Object, and the Bandwidth Management Type is set to Advanced on the Firewall Settings > BWM page. For more information about the Bandwidth Management Type settings, see the Bandwidth Management Overview.
