PANEL_scSslCtrlCustomLists

To configure the Whitelist and Blacklist, click the Configure button to bring up the following window.

Entries can be added, edited and deleted with the buttons beneath each list window.

Note

List matching will be based on the subject common name in the certificate presented in the SSL exchange, not in the URL (resource) requested by the client.

Changes to any of the SSL Control settings will not affect currently established connections; only new SSL exchanges that occur following the change commit will be inspected and affected.

Enabling SSL Control on Zones

Once SSL Control has been globally enabled, and the desired options have been configured, SSL Control must be enabled on one or more zones. When SSL Control is enabled on the zone, the SonicWALL looks for Client Hellos sent from clients on that zone through the SonicWALL will trigger inspection. The SonicWALL then looks for the Server Hello and Certificate that is sent in response for evaluation against the configured policy. Enabling SSL Control on the LAN zone, for example, will inspect all SSL traffic initiated by clients on the LAN to any destination zone.

Note

If you are activating SSL Control on a zone (for example, the LAN zone) where there are clients who will be accessing an SSL server on another zone connected to the SonicWALL (for example, the DMZ zone) it is recommended that you add the subject common name of that server’s certificate to the whitelist to ensure continuous trusted access.

To enable SSL Control on a zone, browse to the Network > Zones page, and select the configure icon for the desired zone. In the Edit Zone window, select the Enable SSL Control checkbox, and click OK. All new SSL connections initiated from that zone will now be subject to inspection.

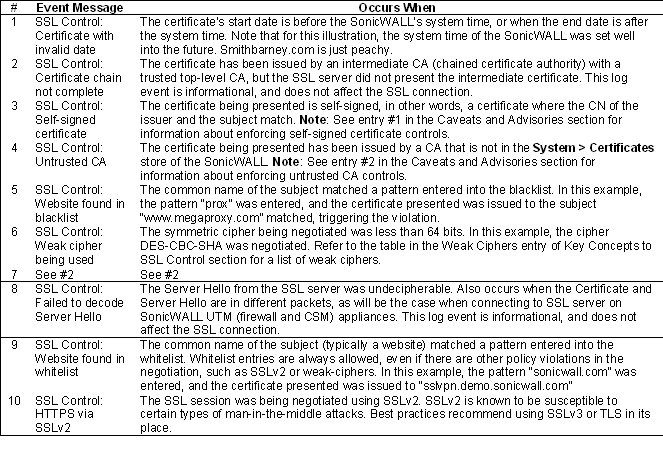

SSL Control Events

Log events will include the client’s username in the notes section (not shown) if the user logged in manually, or was identified through CIA/Single Sign On. If the user’s identity is not available, the note will indicate that the user is Unidentified.



#	Event Message	Conditions When it Occurs
1	SSL Control: Certificate with Invalid date	The certificate’s start date is either before the system time or it’s end date is after the system time.
2	SSL Control: Certificate chain not complete	The certificate has been issued by an intermediate CA with a trusted top-level CA, but the SSL server did not present the intermediate certificate. This log event is informational and does not affe3ct the SSL connection.
3	SSL Control: Self-signed certificate	The certificate is self-signed (the CN of the issuer and the subject match).
4	SSL Control: Untrusted CA	The certificate has been issued by a CA that is not in the System > Certificates store of the SonicWALL.
5	SSL Control: Website found in blacklist	The common name of the subject matched a pattern entered into the blacklist.
6	SSL Control: Weak cipher being used	The symmetric cipher being negotiated was less than 64 bits.
7	See #2	See #2.
8	SSL Control: Failed to decode Server Hello	The Server Hello from the SSL server was undecipherable. Also occurs when the certificate and Server Hello are in different packets, as is the case when connecting to a SSL server on a SonicWALL appliance. This log event is informational, and does not affect the SSL connection.
9	SSL Control: Website found in whitelist	The common name of the subject (typically a website) matched a pattern entered into the Whitelist. Whitelist entries are always allowed, even if there are other policy violations in the negotiation, such as SSLv2 or weak-ciphers.
10	SSL Control: HTTPS via SSLv2	The SSL session was being negotiated using SSLv2, which is known to be susceptible to certain man-in-the-middle attacks. Best practices recommend using SSLv3 or TLS instead.
