High Availability > Monitoring

On the High Availability > Monitoring page, you can configure both physical and logical interface monitoring. By enabling physical interface monitoring, you enable link detection for the designated HA interfaces. The link is sensed at the physical layer to determine link viability. Logical monitoring involves configuring the SonicWALL to monitor a reliable device on one or more of the connected networks. Failure to periodically communicate with the device by the Active unit in the HA Pair will trigger a failover to the Idle unit. If neither unit in the HA Pair can connect to the device, no action will be taken.

The Primary and Backup IP addresses configured on this page are used for multiple purposes:

Configuring unique management IP addresses for both units in the HA Pair allows you to log in to each unit independently for management purposes. Note that non-management traffic is ignored if it is sent to one of these IP addresses. The Primary and Backup SonicWALL security appliances’ unique LAN IP addresses cannot act as an active gateway; all systems connected to the internal LAN will need to use the virtual LAN IP address as their gateway.

The management IP address of the Backup/Idle unit is used to allow license synchronization with the SonicWALL licensing server, which handles licensing on a per-appliance basis (not per-HA Pair). Even if the Backup unit was already registered on MySonicWALL before creating the HA association, you must use the link on the System > Licenses page to connect to the SonicWALL server while accessing the Backup appliance through its management IP address.

When using logical monitoring, the HA Pair will ping the specified Logical Probe IP address target from the Primary as well as from the Backup SonicWALL. The IP address set in the Primary IP Address or Backup IP Address field is used as the source IP address for the ping. If both units can successfully ping the target, no failover occurs. If both cannot successfully ping the target, no failover occurs, as the SonicWALLs will assume that the problem is with the target, and not the SonicWALLs. But, if one SonicWALL can ping the target but the other SonicWALL cannot, the HA Pair will failover to the SonicWALL that can ping the target.

The configuration tasks on the High Availability > Monitoring page are performed on the Primary unit and then are automatically synchronized to the Backup.

To set the independent LAN management IP addresses and configure physical and/or logical interface monitoring, perform the following steps:

  1. Login as an administrator to the SonicOS user interface on the Primary SonicWALL.

  2. In the left navigation pane, navigate to High Availability > Monitoring.

  3. Click the Configure icon for an interface on the LAN, such as X0.

  4. To enable link detection between the designated HA interfaces on the Primary and Backup units, leave the Enable Physical Interface Monitoring checkbox selected.

  5. In the Primary IP Address field, enter the unique LAN management IP address of the Primary unit.

  6. In the Backup IP Address field, enter the unique LAN management IP address of the Backup unit.

  7. Select the Allow Management on Primary/Backup IP Address checkbox. When this option is enabled for an interface, a green icon appears in the interface’s Management column in the Monitoring Settings table on the High Availability > Monitoring page. Management is only allowed on an interface when this option is enabled.

  8. In the Logical Probe IP Address field, enter the IP address of a downstream device on the LAN network that should be monitored for connectivity. Typically, this should be a downstream router or server. (If probing is desired on the WAN side, an upstream device should be used.) The Primary and Backup appliances will regularly ping this probe IP address. If both can successfully ping the target, no failover occurs. If neither can successfully ping the target, no failover occurs, because it is assumed that the problem is with the target, and not the SonicWALL appliances. But, if one appliance can ping the target but the other appliance cannot, failover will occur to the appliance that can ping the target.

  9. The Primary IP Address and Backup IP Address fields must be configured with independent IP addresses on a LAN interface, such as X0, (or a WAN interface, such as X1, for probing on the WAN) to allow logical probing to function correctly.

  10. Optionally, to manually specify the virtual MAC address for the interface, select Override Virtual MAC and enter the MAC address in the field. The format for the MAC address is six pairs of hexadecimal numbers separated by colons, such as A1:B2:C3:d4:e5:f6. Care must be taken when choosing the Virtual MAC address to prevent configuration errors.

  11. When the Enable Virtual MAC checkbox is selected on the High Availability> Advanced page, the SonicOS firmware automatically generates a Virtual MAC address for all interfaces. Allowing the SonicOS firmware to generate the Virtual MAC address eliminates the possibility of configuration errors and ensures the uniqueness of the Virtual MAC address, which prevents possible conflicts.

  12. Click OK.

  13. To configure monitoring on any of the other interfaces, repeat the above steps.

  14. When finished with all High Availability configuration, click Accept. All settings will be synchronized to the Idle unit automatically.

Synchronizing Settings and Verifying Connectivity

Once you finish configuring the High Availability settings on the Primary SonicWALL security appliance and click the Accept button, the Primary will automatically synchronize the settings to the Backup unit, causing the Backup to reboot. You do not need to click the Synchronize Settings button.

Later, when you click Synchronize Settings, it means that you are initiating a full manual synchronization and the Backup will reboot after synchronizing the preferences. You should see a HA Peer Firewall has been updated message at the bottom of the management interface page. Note that the regular Primary-initiated synchronization (automatic, not manual) is an incremental sync, and does not cause the Backup to reboot.

By default, the Include Certificate/Keys setting is enabled. This specifies that Certificates, CRLs and associated settings (such as CRL auto-import URLs and OCSP settings) are synchronized between the Primary and Backup units. When Local Certificates are copied to the Backup unit, the associated Private Keys are also copied. Because the connection between the Primary and Backup units is typically protected, this is generally not a security concern.

Tip             A compromise between the convenience of synchronizing Certificates and the added security of not synchronizing Certificates is to temporarily enable the Include Certificate/Keys setting and manually synchronize the settings, and then disable Include Certificate/Keys.

To verify that Primary and Backup SonicWALL security appliances are functioning correctly, wait a few minutes, then power off the Primary SonicWALL device. The Backup SonicWALL security appliance should quickly take over.

From your management workstation, test connectivity through the Backup SonicWALL by accessing a site on the public Internet – note that the Backup SonicWALL, when Active, assumes the complete identity of the Primary, including its IP addresses and Ethernet MAC addresses.

Log into the Backup SonicWALL’s unique LAN IP address. The management interface should now display Logged Into: Backup SonicWALL Status: (green ball) Active in the upper right corner. If all licenses are not already synchronized with the Primary unit, navigate to the System > Licenses page and register this SonicWALL security appliance on mysonicwall.com. This allows the SonicWALL licensing server to synchronize the licenses.

Now, power the Primary SonicWALL back on, wait a few minutes, then log back into the management interface. The management interface should again display Logged Into: Primary SonicWALL Status: (green ball) Active in the upper right corner.

If you are using the Monitor Interfaces feature, experiment with disconnecting each monitored link to ensure that everything is working correctly.

Successful High Availability synchronization is not logged, only failures are logged.

Forcing Transitions

In some cases, it may be necessary to force a transition from the Active SonicWALL to the Idle unit – for example, to force the Primary SonicWALL to become Active again after a failure when Preempt Mode has not been enabled, or to force the Backup SonicWALL to become Active in order to do preventive maintenance on the Primary SonicWALL.

To force such a transition, it is necessary to interrupt the heartbeat from the currently Active SonicWALL. This may be accomplished by disconnecting the Active SonicWALL’s LAN port, by shutting off power on the currently Active unit, or by restarting it from the Web management interface. In all of these cases, heartbeats from the Active SonicWALL are interrupted, which forces the currently Idle unit to become Active.

To restart the Active SonicWALL, log into the Primary SonicWALL LAN IP address and click System on the left side of the browser window and then click Restart at the top of the window.

Click Restart SonicWALL, then Yes to confirm the restart. Once the Active SonicWALL restarts, the other SonicWALL in the High Availability pair takes over operation.

Warning         If the Preempt Mode checkbox has been selected for the Primary SonicWALL, the Primary unit takes over operation from the Backup unit after the restart is complete.

Tip             SonicWALL recommends disabling preempt mode when using Stateful High Availability. This is because preempt mode can be over-aggressive about failing over to the Backup appliance.

Applying Licenses to SonicWALL Security Appliances

When your SonicWALL security appliances have Internet access, each appliance in a High Availability Pair must be individually registered from the SonicOS management interface while the administrator is logged into the individual management IP address of each appliance. This allows the Backup unit to synchronize with the SonicWALL licensing server and share licenses with the associated Primary appliance. There is also a way to synchronize licenses for an HA Pair whose appliances do not have Internet access.

When live communication with SonicWALL's licensing server is not permitted due to network policy, you can use license keysets to manually apply security services licenses to your appliances. When you register a SonicWALL security appliance on MySonicWALL, a license keyset is generated for the appliance. If you add a new security service license, the keyset is updated. However, until you apply the licenses to the appliance, it cannot perform the licensed services.

Note         In a High Availability deployment without Internet connectivity, you must apply the license keyset to both of the appliances in the HA Pair.

You can use one of the following procedures to apply licenses to an appliance:

Activating Licenses from the SonicOS User Interface

Follow the procedure in this section to activate licenses from within the SonicOS user interface. Perform the procedure for each of the appliances in a High Availability Pair while logged into its individual LAN management IP address. See High Availability > Monitoring to configure the individual IP addresses.

  1. Log in to the SonicOS user interface using the individual LAN management IP address for the appliance.

  2. On the System > Licenses page, under Manage Security Services Online, click the link for To Activate, Upgrade or Renew services, click here.

  3. In the Licenses > License Management page, type your MySonicWALL user name and password into the text boxes.

  4. Click Submit.

  5. On the Systems > Licenses page under Manage Security Services Online, verify the services listed in the Security Services Summary table.

  6.

  7. Repeat this procedure for the other appliance in the HA Pair.

Copying the License Keyset from MySonicWALL

You can follow the procedure in this section to view the license keyset on MySonicWALL and copy it to the SonicWALL security appliance. Perform the procedure for each of the appliances in a High Availability Pair while logged into its individual LAN management IP address. See High Availability > Monitoring to configure the individual IP addresses.

  1. Login to your MySonicWALL account at <https://www.mysonicwall.com/>.

  2. In the left navigation pane, click My Products.

  3. On the My Products page, under Registered Products, scroll down to find the appliance to which you want to copy the license keyset. Click the product name or serial number.

  4. On the Service Management page, click View License keyset.

  5. On the License Keyset page, use your mouse to highlight all the characters in the text box.

  6. This is the license keyset for the SonicWALL security appliance that you selected in Step 3.

  7. To copy the license keyset to the clipboard, press Ctrl+C.

  8. Log in to the SonicOS user interface by using the individual LAN management IP address.

  9. On the Systems > Licenses page under Manual Upgrade, press Ctrl+V to paste the license keyset into the Or enter keyset text box.

  10. Click Submit.

  11. Repeat this procedure for the other appliance in the HA Pair.

Verifying High Availability Status

There are several ways to view High Availability status in the SonicOS Enhanced management interface. See the following sections:

Viewing the High Availability Status Table

The High Availability Status table on the High Availability > Settings page displays the current status of the HA Pair. If the Primary SonicWALL is Active, the first line in the table indicates that the Primary SonicWALL is currently Active.

It is also possible to check the status of the Backup SonicWALL by logging into the unique LAN IP address of the Backup SonicWALL. If the Primary SonicWALL is operating normally, the status indicates that the Backup SonicWALL is currently Idle. If the Backup has taken over for the Primary, the status table indicates that the Backup is currently Active.

In the event of a failure in the Primary SonicWALL, you can access the management interface of the Backup SonicWALL at the Primary SonicWALL virtual LAN IP address or at the Backup SonicWALL LAN IP address. When the Primary SonicWALL restarts after a failure, it is accessible using the unique IP address created on the High Availability > Monitoring page. If preempt mode is enabled, the Primary SonicWALL becomes the Active firewall and the Backup firewall returns to Idle status.




The table displays the following information:

Receiving Email Alerts About High Availability Status

If you have configured the Primary SonicWALL to send email alerts, you receive alert emails when there is a change in the status of the High Availability Pair. For example, when the Backup SonicWALL takes over for the Primary after a failure, an email alert is sent indicating that the Backup has transitioned from Idle to Active. If the Primary SonicWALL subsequently resumes operation after that failure, and Preempt Mode has been enabled, the Primary SonicWALL takes over and another email alert is sent to the administrator indicating that the Primary has preempted the Backup.

Viewing High Availability Events in the Log

The SonicWALL also maintains an event log that displays the High Availability events in addition to other status messages and possible security threats. This log may be viewed in the SonicOS management interface or it may be automatically sent to the administrator’s email address. To view the SonicWALL log, click Log on the left navigation pane of the management interface.

Verifying Active/Active UTM Configuration

This section describes two methods of verifying the correct configuration of Active/Active UTM, and two “false negatives” that might give the impression that the idle unit is not contributing.

See the following:

Comparing CPU Activity on Both Appliances

As soon as Active/Active UTM is enabled on the Stateful HA pair, you can observe a change in CPU utilization on both appliances. CPU activity goes down on the active unit, and goes up on the idle unit.

To view and compare CPU activity:

  1. In two browser windows, log into the Monitoring IP address of each unit, active and idle. For information about configuring HA Monitoring, including individual IP addresses, see the SonicOS Enhanced Administrator’s Guide.

  2. Navigate to the System > Diagnostics page in both SonicOS management interfaces.

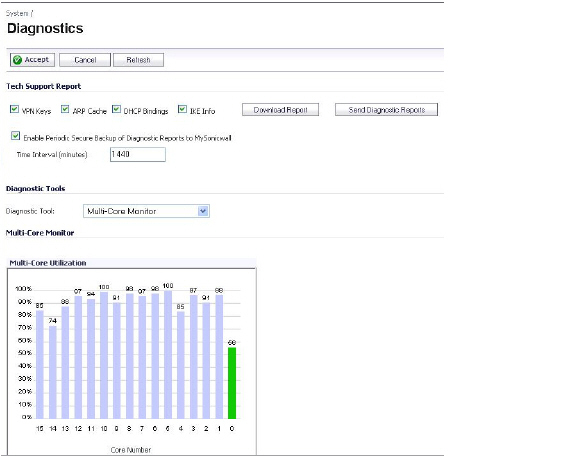

  3. On both appliances, select Multi-Core Monitor from the Diagnostic Tool drop-down list. The active unit is displayed below with the real-time Multi-Core Utilization graph showing an immediate drop in CPU activity.




Additional Parameters in TSR

You can tell that Active/Active UTM is correctly configured on your Stateful HA pair by generating a Tech Support Report on the System > Diagnostics page. The following configuration parameters should appear with their correct values in the Tech Support Report:

To generate a TSR for this purpose:

  1. Log into the Stateful HA pair using the shared IP address.

  2. Navigate to the System > Diagnostics page.

  3. Under Tech Support Report, click Download Report.




Responses to DPI UTM Matches

Responses, or actions, are always sent out from the active unit of the Stateful HA pair running Active/Active UTM when DPI UTM matches are found in network traffic. Note that this does not indicate that all the processing was performed on the active unit.

Deep Packet Inspection discovers network traffic that matches virus attachments, IPS signatures, Application Firewall policies, and other malware. When a match is made, SonicOS Enhanced performs an action such as dropping the packet or resetting the TCP connection.

Some DPI match actions inject additional TCP packets into the existing stream. For example, when an SMTP session carries a virus attachment, SonicOS sends the SMTP client a “552” error response code, with a message saying “the email attachment contains a virus.” A TCP reset follows the error response code and the connection is terminated.

These additional TCP packets are generated as a result of the DPI UTM processing on the idle firewall. The generated packets are sent to the active firewall over the HA data interface, and are sent out from the active firewall as if the processing occurred on the active firewall. This ensures seamless operation and it appears as if the DPI UTM processing was done on the active firewall.

Logging

If DPI UTM processing on the idle firewall results in a DPI match action as described above, then the action is logged on the active unit of the Stateful HA pair, rather than on the idle unit where the match action was detected. This does not indicate that all the processing was performed on the active unit.
