Configuring Legacy SonicWALL Filter Properties

For general information on Content Filter Service, see Security Services > Content Filter .

You can customize SonicWALL content filtering features included with SonicOS from the SonicWALL Filter Properties window. A valid subscription to SonicWALL CFS Premium on a SonicWALL security appliance running SonicOS Enhanced allows you to create custom policies to apply to specified user groups. The Default CFS Premium policy is used as the content filtering basis for all users not assigned to a specific custom policy.

Note

SonicWALL recommends that you make the Default CFS Premium policy the most restrictive policy. Custom CFS policies are subject to content filter inheritance. This means that all custom CFS policies inherit the filters from the Default CFS policy. To ensure proper content filtering, the Default CFS policy should be configured to be the most restrictive policy, then each custom policy should be configured to grant privileges that are otherwise restricted by the Default policy.

To display the SonicWALL Filter Properties window, select SonicWALL CFS from the Content Filter Type drop-down list on the Security Services > Content Filter page, and then click Configure . The SonicWALL Filter Properties window is displayed. For configuration information about the filter properties settings, see the following sections:

•

“CFS”

•

“Policy”

•

“Custom List”

•

“Consent”

CFS

The CFS tab allows you to enable IP-based HTTPS Content Filtering, block or allow traffic to sites when the server is unavailable, and set preferences for your URL cache.

Settings

The Settings section allows you to enable HTTPS content filtering, select what you want the firewall to do if the server is unavailable, and what it should do when access is attempted to a forbidden Web site.

•

Enable IP based HTTPS Content Filtering - Select this checkbox to enable HTTPS content filtering. HTTPS content filtering is IP-based, and will not inspect the URL. While HTTP content filtering can perform redirects to enforce authentication or provide a block page, HTTPS filtered pages will be silently blocked. You must provide the IP address for any HTTPS Web sites to be filtered.

•

If Server is unavailable for (seconds) - Sets the amount of time after the content filter server is unavailable before the SonicWALL security appliance takes action to either block access to all Web sites or allow traffic to continue to all Web sites.

Note

If the server is unavailable, the firewall can allow access to Web sites in the cache memory. This means that by selecting the Block traffic to all Web sites checkbox, the firewall will only block Web sites that are not in the cache memory.

–

Block traffic to all Web sites - Select this feature if you want the SonicWALL security appliance to block access to all Web sites until the content filter server is available.

–

Allow traffic to all Web sites - Select this feature if you want to allow access to all Web sites when the content filter server is unavailable. However, Forbidden Domains and Keywords, if enabled, are still blocked.

•

If URL marked as Forbidden - If you have enabled blocking by Categories and the URL is blocked by the server, there are two options available.

–

Block Access to URL - Selecting this option prevents the browser from displaying the requested URL to the user.

–

Log Access to URL - Selecting this option records the requested URL in the log file.

URL Cache

The URL Cache section allows you to configure the URL cache size on the SonicWALL security appliance.

Tip

A larger URL cache size can provide noticeable improvements in Internet browsing response times.

URL Rating Review

If you believe that a Web site is rated incorrectly or you wish to submit a new URL to be rated, you can click the here link to display the SonicWALL CFS URL Rating Review Request form for submitting the request. This can also be used to view the rating of a URL.

In the SonicWALL CFS URL Rating Review Request form, enter a URL and then click Submit . A description of the URL is displayed. You can then select Rating Request to request that a URL be rated or that the rating be changed.

Policy

The Policy tab is only visible if the SonicWALL appliance has a current subscription to SonicWALL CFS Premium. The Policy tab allows you to modify the Default CFS policy and create custom CFS policies, which you can then apply to specific user groups in the Users > Local Groups page. The Default CFS policy is always inherited by every user. A custom CFS policy allows you to modify the default CFS configuration to tailor content filtering policies for particular user groups on your network.

Note

To ensure proper content filtering, the Default CFS policy should be configured to be the most restrictive policy, and then each custom policy should be configured to grant privileges that are otherwise restricted by the Default policy.

Creating a Custom CFS Policy

Custom CFS policies can only be created when the appliance has a valid subscription for SonicWALL CFS Premium.

To create new policy:

Step 1

Click Add to display the Add CFS Policy window.

Step 2

In the Add CFS Policy window, on the Policy tab, enter a name for the policy in the Name field.

Step 3

Click the URL List tab.

Step 4

In the Select Forbidden Categories list, uncheck any category to which you want to allow access. Move your mouse pointer over the Down or Up arrows to automatically scroll through the list of CFS categories. Select the Select all categories check box if you want to block all categories, or uncheck the box to deselect all categories.

Step 5

Click the Settings tab.

Step 6

Under Custom List Settings , select any of the following settings:

–

Disable Allowed Domains - select this setting to disable the allowed domains that are listed on the Custom List tab in the SonicWALL Filter Properties window.

–

Enable Forbidden Domains - select this setting to enable forbidden domains that are listed on the Custom List tab in the SonicWALL Filter Properties window.

–

Enable Keyword Blocking - select this setting to enable keyword blocking for the URLs that are listed in the Keyword Blocking section on the Custom List tab in the SonicWALL Filter Properties window.

Step 7

Under Safe Search Enforcement Settings , select Enable Safe Search Enforcement to enable the safe browsing options for certain search engines like Google and Yahoo.

Step 8

To configure the schedule for Content Filtering enforcement, select one of the following from the drop-down list under Filter Forbidden URLs by time of day :

–

Always on - When selected, Content Filtering is enforced at all times.

–

From/To - When selected, Content Filtering is enforced during the time and days specified. Enter the time period in 24-hour format, and select the starting and ending day of the week that Content Filtering is enforced. The choices also include work hours and weekend hours.

Step 9

Click OK .

Configuring the Default CFS Policy

The Default policy is displayed in the Policies table.

To configure the Default policy to be the most restrictive:

Step 1

Click the Edit icon in the Configure column. The Edit CFS Policy window is displayed.

Step 2

Click the URL List tab.

Step 3

Select the checkboxes for any additional categories that you want to filter. To select all CFS Premium categories, select the Select All Categories checkbox.

Step 4

If you want to remove CFS blocking of specific categories, clear the checkbox for the category. Move your pointer over the up or down arrow buttons to navigate the categories list.

Step 5

Click OK .

Tip

Time of Day restrictions only apply to the Content Filter List, Customized blocking and Keyword blocking. Consent and Restrict Web Features are not affected.

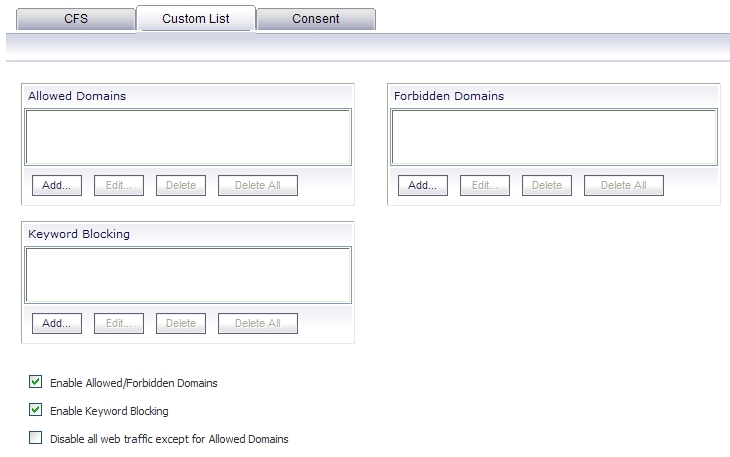

Custom List

You can customize your URL list to include Allowed Domains and Forbidden Domains . By customizing your URL list, you can include specific domains to be accessed, blocked, and include specific keywords to block sites. The settings available on the Custom List page are different for an appliance with a valid SonicWALL CFS Premium subscription than they are for an appliance with no CFS Premium license. The image below shows the Custom List page for an appliance with an active CFS Premium subscription.

For an appliance with a CFS Premium subscription, these features are controlled by each Policy. To enable or disable any of the features on this page, see “Enabling or Disabling on Appliances With a CFS Premium Subscription” .

For an appliance without a CFS Premium subscription, see “Enabling or Disabling on Appliances Without a CFS Premium Subscription” .

To allow access to a Web site that is blocked by the Content Filter List, click Add , and enter the host name, such as “www.ok-site.com”, into the Allowed Domains fields. 1,024 entries can be added to the Allowed Domains list.

To block a Web site that is not blocked by the Content Filter Service , click Add , and enter the host name, such as “www.bad-site.com” into the Forbidden Domains field. 1,024 entries can be added to the Forbidden Domains list.

Warning

Do not include the prefix “http://” in either the Allowed Domains or Forbidden Domains the fields. All subdomains are affected. For example, entering “yahoo.com” applies to “mail.yahoo.com” and “my.yahoo.com”.

To enable blocking using Keywords , click Add under Keyword Blocking and enter the keyword to block in the Add Keyword field.

To remove a trusted or forbidden domain, select it from the appropriate list, and click Delete . Once the domain has been deleted, the Status bar displays Ready .

To remove a keyword, select it from the list and click Delete . Once the keyword has been removed, the Status bar displays Ready .

Click OK when finished.

Enabling or Disabling Allowed/Forbidden Domains or Keyword Blocking

By default, the Allowed Domains list is disabled, and the Forbidden Domains list and Keyword Blocking list are enabled. When SonicWALL CFS Premium is licensed on the appliance, these settings are controlled on a per-policy basis. Without a current SonicWALL CFS Premium subscription, these settings are available on the Custom List tab at the bottom of the page.

Enabling or Disabling on Appliances With a CFS Premium Subscription

To enable or disable the Allowed/Forbidden Domains or Keyword Blocking features when the SonicWALL appliance has a current subscription to SonicWALL CFS Premium:

Step 1

On the Security Services > Content Filter page, select SonicWALL CFS under Content Filter Type and click Configure .

Step 2

On the SonicWALL Filter Properties page, click the Policy tab.

Step 3

Click the Edit icon in the Configure column of the Policy for which to enable or disable these features.

Step 4

In the Edit CFS Policy window, click the Settings tab.

Step 5

Under Custom List Settings , select any of the following settings:

–

Disable Allowed Domains - select this setting to disable the allowed domains that are listed on the Custom List tab. The domains in the Allowed Domains list will not be exempt from content filtering.

–

Enable Forbidden Domains - select this setting to enable filtering (blocking) of forbidden domains that are listed on the Custom List tab.

–

Enable Keyword Blocking - select this setting to enable keyword blocking for the URLs that are listed in the Keyword Blocking section on the Custom List tab.

Step 6

Click OK .

Enabling or Disabling on Appliances Without a CFS Premium Subscription

To enable or disable the Allowed/Forbidden Domains or Keyword Blocking features when the SonicWALL appliance is not licensed for SonicWALL CFS Premium:

Step 1

On the Custom List tab, at the bottom of the page, select any of the following settings:

–

Disable Allowed Domains - select this setting to disable the allowed domains that are listed on the Custom List tab. The domains in the Allowed Domains list will not be exempt from content filtering.

–

Enable Forbidden Domains - select this setting to enable filtering (blocking) of forbidden domains that are listed on the Custom List tab.

–

Enable Keyword Blocking - select this setting to enable keyword blocking for the URLs that are listed in the Keyword Blocking section on the Custom List tab.



Step 2

Click OK .

Disable all Web traffic except for Allowed Domains

Selecting the Disable Web traffic except for Allowed Domains check box causes the SonicWALL security appliance to allow Web access only to sites on the Allowed Domains list. With careful screening, this can be nearly 100% effective at blocking pornography and other objectionable material.

The Disable Web traffic except for Allowed Domains check box is not available when the SonicWALL appliance has a valid SonicWALL CFS subscription. In this case, you can configure a CFS Policy to block undesirable Web sites.

Consent

The Consent tab allows you to enforce content filtering on designated computers and provide optional filtering on other computers. Consent can be configured to require the user to agree to the terms outlined in an Acceptable Use Policy window before Web browsing is allowed.

To enable the Consent properties, select Require Consent .

•

Maximum Web Usage (minutes) - In an environment where there are more users than computers, such as a classroom or library, time limits are often imposed. The SonicWALL security appliance can be used to remind users when their time has expired by displaying the page defined in the Consent page URL field. Enter the time limit, in minutes, in the Maximum Web usage field. When the default value of zero (0) is entered, this feature is disabled.

•

User Idle Timeout (minutes) - After a period of Web browser inactivity, the SonicWALL security appliance requires the user to agree to the terms outlined in the Consent page before accessing the Internet again. To configure the value, follow the link to the Users window and enter the desired value in the User Idle Timeout section.

•

Consent Page URL (optional filtering) - When a user opens a Web browser on a computer requiring consent, they are shown a consent page and given the option to access the Internet with or without content filtering. This page must reside on a Web server and be accessible as a URL by users on the network. It can contain the text from, or links to an Acceptable Use Policy (AUP). This page must contain links to two pages contained in the SonicWALL security appliance, which, when selected, tell the SonicWALL security appliance if the user wishes to have filtered or unfiltered access. The link for unfiltered access must be <192.168.168.168/iAccept.html> and the link for filtered access must be <192.168.168.168/iAcceptFilter.html>, where the SonicWALL LAN IP address is used instead of 192.168.168.168"\.

•

Consent Accepted URL (filtering off) - When a user accepts the terms outlined in the Consent page and chooses to access the Internet without the protection of Content Filtering , they are shown a Web page confirming their selection. Enter the URL of this page in the Consent Accepted (filtering off) field. This page must reside on a Web server and be accessible as a URL by users on the network.

•

Consent Accepted URL (filtering on) - When a user accepts the terms outlined in the Consent page and chooses to access the Internet with the protection of Content Filtering, they are shown a Web page confirming their selection. Enter the URL of this page in the Consent Accepted (filtering on) field. This page must reside on a Web server and be accessible as a URL by users on the network.

Mandatory Filtered IP Addresses

When a user opens a Web browser on a computer using mandatory content filtering, a consent page is displayed. You must create the Web page that appears when the Web browser is opened. It can contain text from an Acceptable Use Policy, and notification that violations are logged or blocked.

This Web page must reside on a Web server and be accessible as a URL by users on the LAN. This page must also contain a link to a page contained in the SonicWALL security appliance that tells the device that the user agrees to have filtering enabled. The link must be <192.168.168.168/iAcceptFilter.html>, where the SonicWALL LAN IP address is used instead of 192.168.168.168.

Enter the URL of this page in the Consent Page URL (mandatory filtering) field and click OK . Once the SonicWALL security appliance has been updated, a message confirming the update is displayed at the bottom of the Web browser window.

Adding a New Address

The SonicWALL security appliance can be configured to enforce content filtering for certain computers on the LAN. Click Add to display the Add Filtered IP Address Entry window. Enter the IP addresses of these computers in the Add New Address field and then click the Submit button. Up to 128 IP addresses can be entered.

To remove a computer from the list of computers to be filtered, highlight the IP address in the Mandatory Filtered IP Addresses list and click Delete .
