DPI-SSL > Server SSL
DPI-SSL Overview
Deep Packet Inspection of Secure Socket Layer (DPI-SSL) extends SonicWALL’s Deep Packet Inspection technology to allow for the inspection of encrypted HTTPS traffic and other SSL-based traffic. The SSL traffic is decrypted transparently, scanned for threats and then re-encrypted and sent along to its destination if no threats or vulnerabilities are found. DPI-SSL provides additional security, application control, and data leakage prevention for analyzing encrypted HTTPS and other SSL-based traffic.
The following security services and features are capable of utilizing DPI-SSL:
DPI-SSL has two main deployment scenarios:
|
|
|
Client DPI-SSL: Used to inspect HTTPS traffic when clients on the SonicWALL security appliance’s LAN access content located on the WAN. |
|
|
|
Server DPI-SSL: Used to inspect HTTPS traffic when remote clients connect over the WAN to access content located on the SonicWALL security appliance’s LAN. |
The DPI-SSL feature is available in SonicOS Enhanced 5.6. The following table shows which platforms support DPI-SSL and the maximum number of concurrent connections on which the appliance can perform DPI-SSL inspection.
Configuring Server DPI-SSL Settings
The Server DPI-SSL deployment scenario is typically used to inspect HTTPS traffic when remote clients connect over the WAN to access content located on the SonicWALL security appliance’s LAN. Server DPI-SSL allows the user to configure pairings of an address object and certificate. When the appliance detects SSL connections to the address object, it presents the paired certificate and negotiates SSL with the connecting client.
Afterward, if the pairing defines the server to be 'cleartext' then a standard TCP connection is made to the server on the original (post NAT remapping) port. If the pairing is not defined to be cleartext, then an SSL connection to the server is negotiated. This allows for end-to-end encryption of the connection.
In this deployment scenario the owner of the SonicWALL UTM owns the certificates and private keys of the origin content servers. Administrator would have to import server's original certificate onto the UTM appliance and create appropriate server IP address to server certificate mappings in the Server DPI-SSL UI.
The following sections describe how to configure Server DPI-SSL:
Configuring General Server DPI-SSL Settings

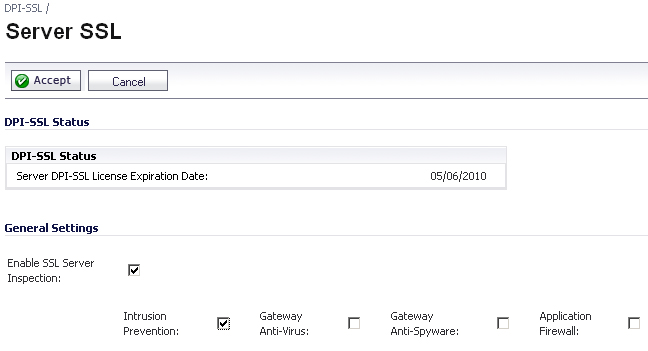

To enable Server DPI-SSL inspection, perform the following steps:
|
|
Navigate to the DPI-SSL > Server SSL page. |
|
|
Select the Enable SSL Inspection checkbox. |
|
|
Select which of the following services to perform inspection with: Intrusion Prevent , Gateway Anti-Virus , Gateway Anti-Spyware , and Application Firewall . |
|
|
Click Apply . |
|
|
Scroll down to the SSL Servers section to configure the server or servers to which DPI-SSL inspection will be applied. See “Configuring Server-to-Certificate Pairings” . |
Configuring the Exclusion List
By default, the DPI-SSL applies to all traffic on the appliance when it is enabled. You can configure an Inclusion/Exclusion list to customize which traffic DPI-SSL inspection will apply to. The Inclusion/Exclusion list provides the ability to specify certain objects, groups, or hostnames. In deployments that are processing a large amount of traffic, it can be useful to exclude trusted sources in order to reduce the CPU impact of DPI-SSL and to prevent the appliance from reaching the maximum number of concurrent DPI-SSL inspected connections.

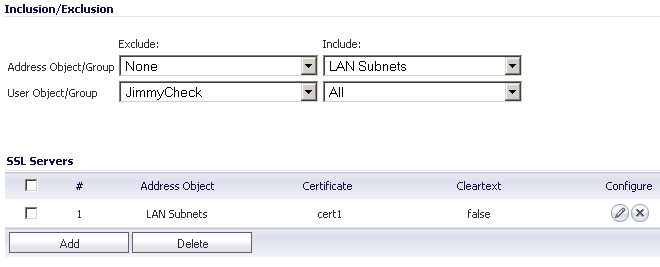

The Inclusion/Exclusion section of the Server SSL page contains two options for specifying the inclusion list:
|
|
|
On the Address Object/Group line, select an address object or group from the Exclude pulldown menu to exempt it from DPI-SSL inspection. |
|
|
|
On the User Object/Group line, select a user object or group from the Exclude pulldown menu to exempt it from DPI-SSL inspection. |
|
|
|
The Include pulldown menu can be used to fine tune the specified exclusion list. For example, by selecting the Remote-office-California address object in the Exclude pulldown and the Remote-office-Oakland address object in the Include pulldown. |
Configuring Server-to-Certificate Pairings
Server DPI-SSL inspection requires that you specify which certificate will be used to sign traffic for each server that will have DPI-SSL inspection performed on its traffic. To configure a server-to-certificate pairing, perform the following steps:
|
|
Navigate to the DPI-SSL > Server SSL page and scroll down to the SSL Servers section. |
|
|
Click the Add button. |
|
|
In the Address Object/Group pulldown menu, select the address object or group for the server or servers that you want to apply DPI-SSL inspection to. |
|
|
In the SSL Certificate pulldown menu, select the certificate that will be used to sign the traffic for the server. For more information on importing a new certificate to the appliance, see“Selecting the Re-Signing Certificate Authority” . For information on creating a certificate, see “Creating PKCS-12 Formatted Certificate File” . |
|
|
Select the Cleartext checkbox to enable SSL offloading. See “SSL Offloading” for more information. |
|
|
Click Add . |
SSL Offloading
When adding server-to-certificate pairs, a cleartext option is available. This option indicates that the portion of the TCP connection between the UTM appliance and the local server will be in the clear without SSL layer, thus allowing SSL processing to be offloaded from the server by the appliance.
Please note that in order for such configuration to work properly, a NAT policy needs to be created on the Network > NAT Policies page to map traffic destined for the offload server from an SSL port to a non-SSL port. For example, in case of HTTPS traffic being used with SSL offloading, an inbound NAT policy remapping traffic from port 443 to port 80 needs to be created in order for things to work properly.
